- Case
- Case and slide piece hand-guilloched with a hobnail pattern. Skeletonized lugs
- Movement
- Self-winding
- Size
- 40.2 mm
Overview
A repeater that strikes local time, under an enamel map

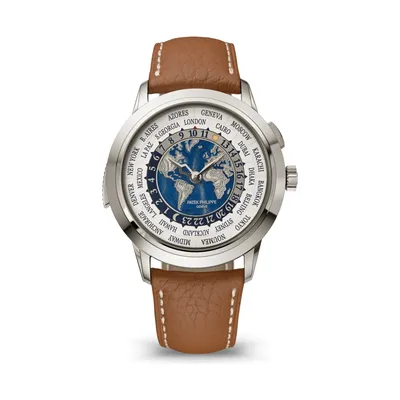

The Patek Philippe Rare Handcrafts Planisphere, reference 5531G-010, in white gold with a champlevé enamel and hand-engraved world-map dial, on a grained light brown calfskin strap. Self-winding calibre R 27 HU, a minute repeater with World Time for all 24 time zones; 40.2 mm, 11.49 mm high.
The dial of 5531G-010 is a map of the world in champlevé enamel and hand-engraving — which Patek Philippe calls Planisphere. The engraver first cut the ocean depths into the dial plate by hand; the enameller then laid translucent blue enamel over them and worked the mid-ocean ridges and trenches in transparent enamels in 3 colours, through 10 to 15 firings at about 780°C; after the last firing the engraver returned to cut his reading of the continental plates. Patek Philippe presents it as a limited edition of ten watches.
The reference 5531G-010 is a Calatrava minute repeater with World Time from Patek Philippe's Rare Handcrafts collection, in white gold. The case is 40.2 mm across and 11.49 mm high; the case and the repeater's slide piece are hand-guilloched with the hobnail (clous de Paris) pattern Patek Philippe calls emblematic of its style, the lugs are skeletonised, and the watch is delivered with two case backs, sapphire crystal and solid white gold, that can be exchanged. A skeletonised white gold hour hand, whose shape Patek Philippe traces to the Southern Cross, and a lozenge-outline white gold minute hand read the time.
The movement is the self-winding calibre R 27 HU, which combines a minute repeater with the World Time mechanism: 32 mm across, 8.5 mm high, 452 parts and 45 jewels, wound by a 22K gold off-centre minirotor that is itself guilloched. The World Time display gives a 24-hour and day/night indication for all 24 time zones, and the repeater is a local time strike — it chimes the time shown for the selected zone, on two classic gongs, when the slide piece is drawn. The calibre runs at 21,600 semi-oscillations an hour on a Gyromax® balance with a Spiromax® balance spring, has a power reserve of 43 to 48 hours and carries the Patek Philippe Seal. Patek Philippe describes the case as humidity- and dust-protected only, not water-resistant.
For collectors
Patek Philippe presents the calibre R 27 HU as a Grand Complication movement whose architecture and finishing are meant to be seen, which is why a sapphire crystal back is fitted and a solid white gold back supplied beside it. The dial is an engraved-and-enamelled world map, worked in 3 transparent colours over 10 to 15 firings and engraved again after the enamel was fired, in an edition Patek Philippe gives as ten watches.
Key details
Design and engineering
- Champlevé enamel dialThe oceans are hand-engraved into the dial plate as cells, then filled with translucent blue enamel; the ridges and trenches are worked in transparent enamels in 3 colours through 10 to 15 firings at about 780°C, and the continental plates are engraved after the last firing.
- CaseWhite gold, 40.2 mm across and 11.49 mm high, the case and the repeater's slide piece hand-guilloched with the hobnail pattern and the lugs skeletonised. Humidity- and dust-protected only, not water-resistant.

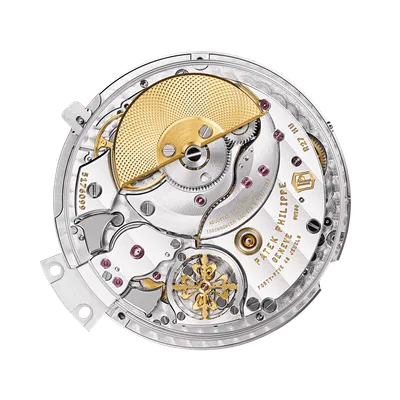

- Interchangeable case backsA sapphire crystal back shows the calibre R 27 HU and can be exchanged for the solid white gold back supplied with the watch.
- HandsA skeletonised white gold hour hand whose shape Patek Philippe traces to the Southern Cross constellation, and a white gold minute hand with a lozenge-shaped outline.
- Strap and claspHand-stitched calfskin, grained light brown, closed by a white gold fold-over clasp bearing a Calatrava cross.
Calibre R 27 HU
- Self-winding, 22K gold off-centre guilloched minirotor
- Minute repeater with chime on two classic gongs, local time strike

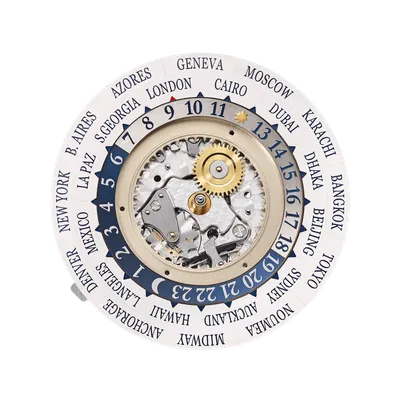

- World Time: 24-hour and day/night indication for all 24 time zones
- 32 mm across, 8.5 mm high; 452 parts, 45 jewels
- 21,600 semi-oscillations per hour (3 Hz), Gyromax® balance, Spiromax® balance spring
- Power reserve min. 43 hours, max. 48 hours
- Patek Philippe Seal
The reference
Technical specifications
| Reference | 5531G-010 |
|---|---|
| Collection | Rare Handcrafts |
| Calibre | Caliber R 27 HU |
| Movement | Self-winding |
| Functions | Minute repeater with chime on two classic gongs, Local time strike, World Time, 24-hour and day/night indication for all 24 time zones |
| Case dimensions | 40.2 mm |
| Case thickness | 11.49 mm |
| Case material | White gold |
| Case | Case and slide piece hand-guilloched with a hobnail pattern. Skeletonized lugs |
| Case back | Sapphire crystal case back |
| Water resistance | Not water-resistant |
| Strap | Calfskin, hand-stitched, grained light brown |
| Clasp | White gold fold-over clasp |
| Jewels | 45 |
| Power reserve | min. 43 hours – max. 48 hours |
| Frequency | 21,600 semi-oscillations/hour (3 Hz) |
| Piece | Planisphere |
