- Case
- Caseband and pusher guilloched with hobnail pattern. Skeletonized lugs
- Movement
- Self-winding
- Size
- 41 mm
Overview
A 24-hour alarm that strikes a gong

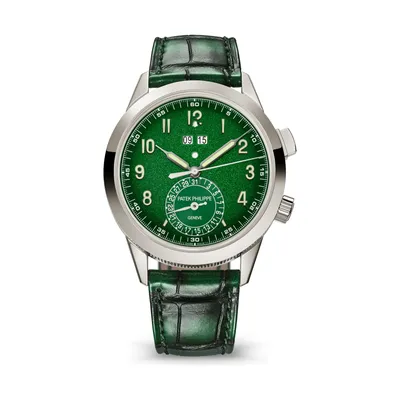

The Patek Philippe Grand Complications Chiming Alarm, reference 5322G-010, in white gold with a hobnail-guilloched caseband, lacquered green dial with a black-gradient rim, on a patinated green alligator strap. Self-winding calibre AL 30-660 S C with 24-hour alarm on a gong, date and sweep seconds; 41 mm, 12.22 mm high.
The green execution carries a textured lacquered green dial with a black-gradient rim, its applied numerals and syringe-shaped hands in white gold with luminescent coating, on a patinated green alligator strap with square scales; the beige nubuck-finish calfskin strap is supplied with it too.
The reference 5322 is Patek Philippe's chiming alarm in the Grand Complications collection: a self-winding watch with date whose alarm can be set for any time within 24 hours and sounds through a hammer striking a classic gong. Patek Philippe presents it as its only water-resistant chiming watch and as a Calatrava. The white gold case, 41 mm across and 12.22 mm high, carries a hobnail guilloché around the whole caseband and on the pusher, skeletonised lugs and a sapphire crystal back, and is water-resistant to 30 m.
The calibre AL 30-660 S C is wound by a 21K gold central rotor and measures 31 mm across and 6.6 mm high, with 524 parts and 52 jewels; it runs at 28,800 semi-oscillations an hour (4 Hz) on a Gyromax® balance with a Spiromax® balance spring, for a power reserve of 42 to 52 hours, under the Patek Philippe Seal. The alarm time is shown digitally in an aperture, in 15-minute increments, with the alarm's on/off state and its day/night setting in apertures of their own; Patek Philippe counts four patents granted for the alarm and describes the setting as intuitive. Sweep seconds, and a date by hand in a sub-dial at 6 o'clock, complete the dial, whose applied numerals and syringe-shaped hands are white gold with luminescent coating.
For collectors
Patek Philippe's claim is a specific one: a chiming watch that is water-resistant, to 30 m. That, with the alarm read digitally in an aperture in 15-minute increments rather than by a hand, is what the reference brings that a minute repeater does not, and both are Patek Philippe's own points.
Key details
Design and engineering
- AlarmA 24-hour alarm sounded by a single hammer on a classic gong; the time is set and read in an aperture in 15-minute increments, with on/off and day/night indications in apertures. Patek Philippe counts four patents granted for it.
- Water resistance30 m — Patek Philippe presents this as the only water-resistant chiming watch Patek Philippe makes; a sapphire crystal back closes the case.

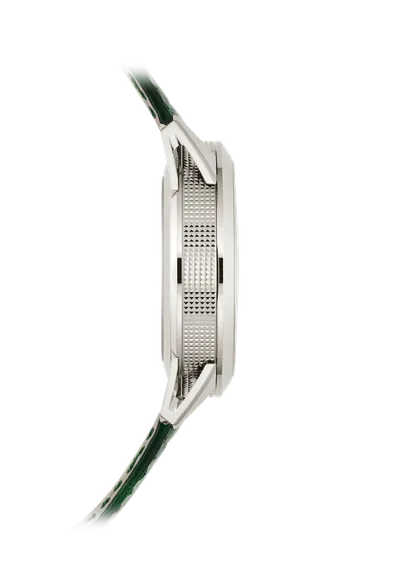

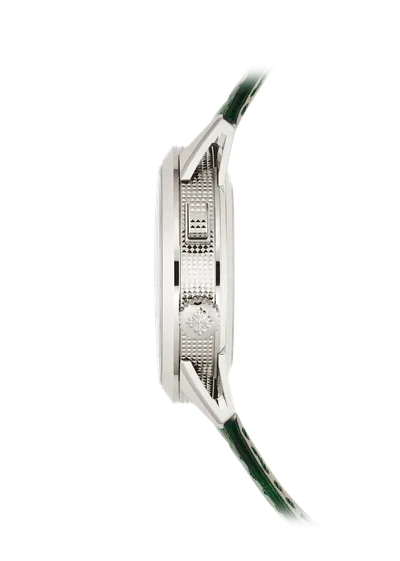

- CaseWhite gold, 41 mm across and 12.22 mm high, with a hobnail pattern guilloched around the entire caseband and on the pusher, and skeletonised lugs.
- DialTextured lacquered green with a black-gradient rim; applied numerals and syringe-shaped hour and minute hands in white gold with luminescent coating; date by hand in a sub-dial at 6 o'clock.
- Straps and claspPatinated green alligator leather with square scales, closed by the brand's patented triple-blade fold-over clasp in white gold; a second strap in beige nubuck-finish calfskin is supplied.

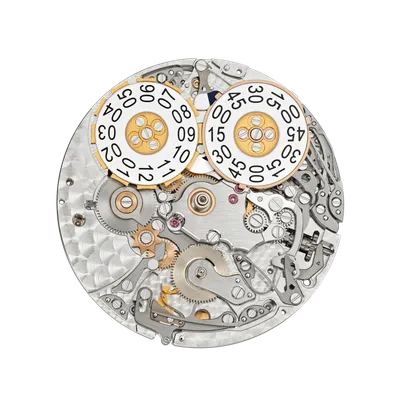

Calibre AL 30-660 S C

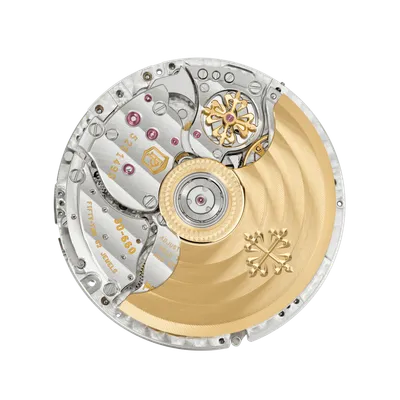

- Self-winding, 21K gold central rotor
- 24-hour alarm with chime on a classic gong; alarm time, on/off and day/night indications in apertures
- Date by hand; sweep seconds
- 31 mm across, 6.6 mm high; 524 parts, 52 jewels
- 28,800 semi-oscillations per hour (4 Hz), Gyromax® balance, Spiromax® balance spring
- Power reserve 42 to 52 hours
- Patek Philippe Seal
The reference
Technical specifications
| Reference | 5322G-010 |
|---|---|
| Collection | Grand Complications |
| Calibre | Caliber AL 30-660 S C |
| Movement | Self-winding |
| Functions | 24-hour alarm with chime on a classic gong, Alarm time displayed in an aperture, Alarm on/off indication in an aperture, Alarm day/night indication in an apertures, Date by hand, Sweep seconds |
| Case dimensions | 41 mm |
| Case thickness | 12.22 mm |
| Case material | White gold |
| Case | Caseband and pusher guilloched with hobnail pattern. Skeletonized lugs |

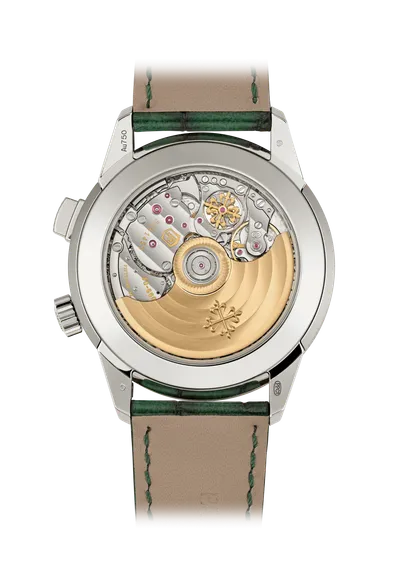

| Case back | Sapphire crystal case back |
| Water resistance | 30 m |
| Dial | Textured lacquered green with black-gradient rim, white gold applied numerals with luminescent coating |
| Strap | Alligator leather with square scales, patinated green |
| Clasp | White gold patented triple-blade fold-over clasp |
| Jewels | 52 |
| Power reserve | min. 42 hours – max. 52 hours |
| Frequency | 28,800 semi-oscillations/hour (4 Hz) |
