- Movement
- Manual winding
- Edition
- Unique piece.
Overview
A Song landscape in blue-and-green enamel

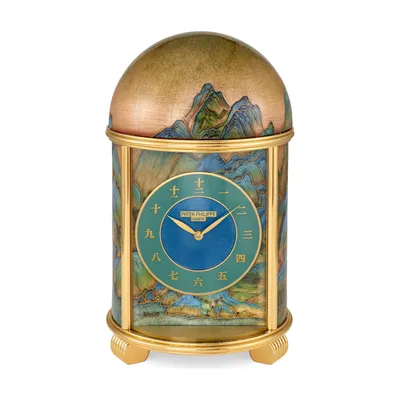

The Patek Philippe dome table clock Chinese Panels, reference 20203M-001, a unique piece in Grand Feu cloisonné enamel with miniature painting, after Wang Ximeng's A Thousand Li of Rivers and Mountains, with gold-dusted Chinese numerals on green lacquer; 213.5 mm high, 128 mm wide, on the calibre 17''' PEND DOME rewound by an electric motor.

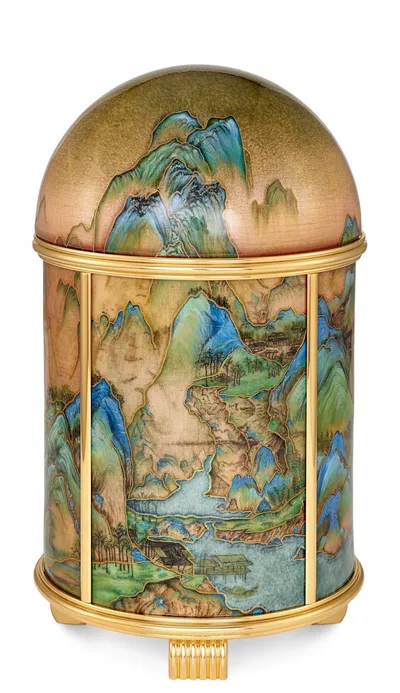

The reference 20203M-001 is a dome table clock from Patek Philippe's Rare Handcrafts collection, a unique piece whose panels reproduce the mountain landscape of A Thousand Li of Rivers and Mountains, the one surviving painting by Wang Ximeng of the Northern Song dynasty, in the blue-and-green manner of that period. It is worked in Grand Feu cloisonné enamel with the houses and boats of the original in miniature painting.
The plates were brushed first, to take the texture of canvas. The mountains were then outlined in about 5.35 m of gold wire (around 14.25 g) and coloured in a palette of transparent and opaque enamels in 5 colours — the blue-and-green of the source — with 14 colours of miniature painting on enamel for the houses and boats. Each enamelled plate went through 16 firings at about 750°C. The hour circle is green lacquer around a sunburst centre under translucent blue enamel; the Chinese numerals are transfer-printed and dusted with yellow gold to match the gilt leaf-shaped hands. The clock is driven by the calibre 17''' PEND DOME, a mechanical movement rewound by an electric motor.
For collectors
A cloisonné palette of 5 colours, because the source painting is itself two colours; Patek Philippe gives brushed plates and transfer-printed Chinese numerals in gold dust.
Key details
Design and engineering
- Cloisonné enamelThe plates brushed to the texture of canvas; about 5.35 m of gold wire (around 14.25 g) outlines the mountains; transparent and opaque enamels in 5 colours, the blue-and-green of the Song manner, fill the cells; each plate is fired 16 times at about 750°C.
- Miniature painting on enamel14 colours, for the houses and boats of the original.
- DialA green lacquer hour circle with transfer-printed Chinese numerals dusted with yellow gold and gilt leaf-shaped hands; a sunburst centre under translucent blue enamel.
- Dimensions213.5 mm high, 128 mm wide.
Calibre 17''' PEND DOME
- Manual winding, rewound by an electric motor
- 38.65 mm across, 3.7 mm high; 214 parts, 21 jewels
- 18,000 semi-oscillations per hour (2.5 Hz), Breguet balance spring
- Patek Philippe Seal
The reference
Technical specifications
| Reference | 20203M-001 |
|---|---|
| Collection | Rare Handcrafts |
| Calibre | Caliber 17''' PEND DOME |
| Movement | Manual winding |
| Jewels | 21 |
| Frequency | 18,000 semi-oscillations/hour (2.5 Hz) |
| Type | Dome clock |
| Piece | Chinese Panels |
| Edition | Unique piece. |
