- Case
- Tripartite tonneau
- Movement
- Automatic winding, skeletonised
- Size
- 49.94 × 44.50 × 13.15 mm
Overview
Carbon TPT® case, red crown, red rubber strap
The Carbon TPT® execution of the RM 35-02 was released alongside the red Quartz TPT® version in 2016. The case carries the layered striations of the material through bezel, caseband and back bezel, with a red crown and the yellow RM35-02 RAFA plaque on the flange, against a red rubber strap.
The calibre RMAL1 was the first automatic movement in the Nadal collection, built on a grade 5 titanium baseplate with a variable-geometry rotor and a double barrel supplying a 55-hour reserve.
Key details
Case materialCarbon TPT®
MovementCalibre RMAL1, skeletonised automatic winding
Power reserveCirca 55 hours
Design and engineering
- Carbon TPT® caseLayers of parallel carbon filaments no thicker than 30 microns, impregnated with resin, woven with the weft rotated 45° between layers, heated to 120 °C at 6 bar and machined at Richard Mille’s ProArt case factory.
- Variable-geometry rotorRichard Mille’s patented system, allowing the winding rate to be matched to the wearer’s activity by adjusting the rotor’s inertia.

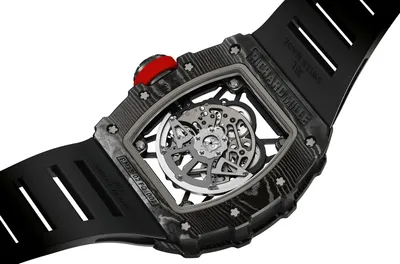

- Sapphire casebackA first for the Nadal collection, treated anti-reflective so that the calibre can be read from the reverse.
- Double-barrel systemTwo barrels supply the reserve and even out torque delivery.
- Free-sprung balance with variable inertiaThe regulator index is eliminated; regulation is by four small weights set directly on the balance.
- Grade 5 titanium baseplate and bridgesBlack PVD treated, with red accents.
Specifications
Technical specifications
| Reference | RM 35-02 |
|---|---|
| Calibre | RMAL1 |
| Movement | Automatic winding, skeletonised |
| Functions | Hours, minutes, seconds; variable-geometry rotor |
| Power reserve | Circa 55 hours |
| Jewels | 32 |
| Balance | Free-sprung, variable inertia |
| Frequency | 28,800 vph (4 Hz) |
| Barrels | Double barrel |
| Baseplate and bridges | Grade 5 titanium, black PVD treated |
| Rotor | Variable geometry |
| Case | Tripartite tonneau |
| Case dimensions | 49.94 × 44.50 × 13.15 mm |
| Case material | Carbon TPT® |
| Caseback | Sapphire, anti-reflective |
| Water resistance | 50 m |
| Strap | Red rubber |
| Introduced | 2016 |
