- Movement
- Manual winding tourbillon
- Size
- 42.68 × 50.12 × 14.30 mm
- Edition
- 50 pieces
Overview
White Quartz TPT® bezel, Quartz TPT® caseback and satin-finished titanium caseband

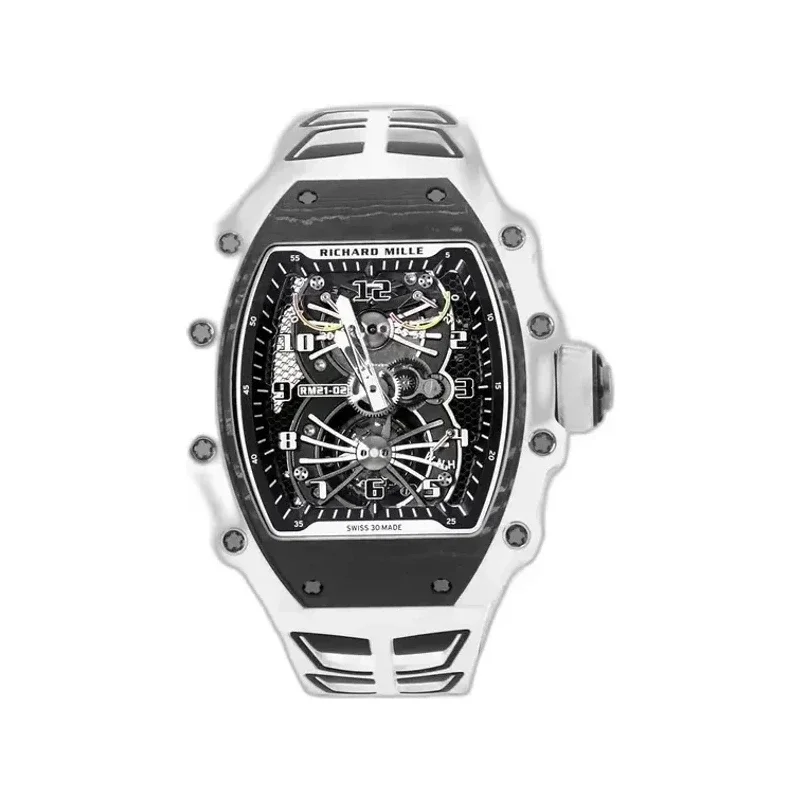

Presented in November 2023 in an edition of 50 pieces, this RM 21-02 combines white Quartz TPT® and titanium for the bezel, Quartz TPT® for the caseback, and a caseband in satin-finished grade 5 titanium with pillars in Carbon TPT®. The case is assembled with 20 grade 5 titanium spline screws.
The layered materials are impregnated with black and white matrices, woven with the weft turning 45° between layers, then cured at 120 °C under pressure. The baseplate is honeycombed orthorhombic HAYNES 214 over a Carbon TPT® core, with the winding barrel and tourbillon placed centrally.
Key details
Case materialsWhite Quartz TPT® and titanium bezel, Quartz TPT® caseback, satin-finished grade 5 titanium caseband with Carbon TPT® pillars
MovementCalibre RM21-02, manual winding tourbillon
Edition50 pieces
Design and engineering
- Three-material caseQuartz TPT®, Carbon TPT® and grade 5 titanium are combined across bezel, caseband, pillars and caseback. Richard Mille describes the result as among the most involved case constructions it has manufactured.
- HAYNES 214 honeycomb baseplateA nickel-chromium-aluminium-iron alloy in a honeycombed geometry with black PVD, over a Carbon TPT® core.
- Arabic numeral hour markersThe openworked dial carries Arabic numerals for the hours, with colour used to distinguish the power-reserve and torque indications.
- Crown and pusherThe crown sits at 3 o’clock with a push button that changes the selected function, shown at 4 o’clock.
- Case constructionTwenty grade 5 titanium spline screws with abrasion-resistant 316L stainless steel washers; water resistance 50 metres.
Specifications
Technical specifications
| Reference | RM 21-02 |
|---|---|
| Calibre | RM21-02 |
| Movement | Manual winding tourbillon |
| Functions | Hours, minutes, function selector, power-reserve indicator, torque indicator |
| Power reserve | Around 70 hours (± 10%) |
| Frequency | 21,600 vph (3 Hz) |
| Jewels | 27 |
| Balance | Glucydur®, 2 arms, 4 setting screws, moment of inertia 10 mg·cm², angle of lift 53° |
| Balance spring | Elinvar by Nivarox® |
| Shock protection | KIF Elastor KE 160 B28 |
| Barrel shaft | Nickel-free Chronifer® (DIN x 46 Cr 13 + S) |
| Tourbillon diameter | 12.30 mm |
| Balance wheel diameter | 10.00 mm |
| Movement dimensions | 30.20 × 29.20 mm, thickness 7.14 mm |
| Baseplate | Honeycombed orthorhombic HAYNES 214 with Carbon TPT® core, black PVD |
| Movement finish | Black and grey PVD, hand-polished anglage |
| Indications | Power reserve at 11 o’clock, torque at 1 o’clock, function selector at 4 o’clock |
| Case dimensions | 42.68 × 50.12 × 14.30 mm |
| Case shape | Tonneau |
| Bezel | White Quartz TPT® and titanium |
| Caseband | Satin-finished grade 5 titanium with Carbon TPT® pillars |
| Caseback | Quartz TPT® |
| Case construction | 20 grade 5 titanium spline screws, 316L stainless steel washers, casing ring eliminated |
| Dial | Sapphire, openworked, Arabic numerals |
| Crystal | Sapphire |
| Water resistance | 50 m |
| Strap | White rubber |
| Edition | 50 pieces |
| Year | 2023 |
