- Movement
- Manual winding tourbillon
- Size
- 42.68 × 50.12 × 14.30 mm
Overview
Pale Quartz TPT® execution of the Tourbillon Aerodyne

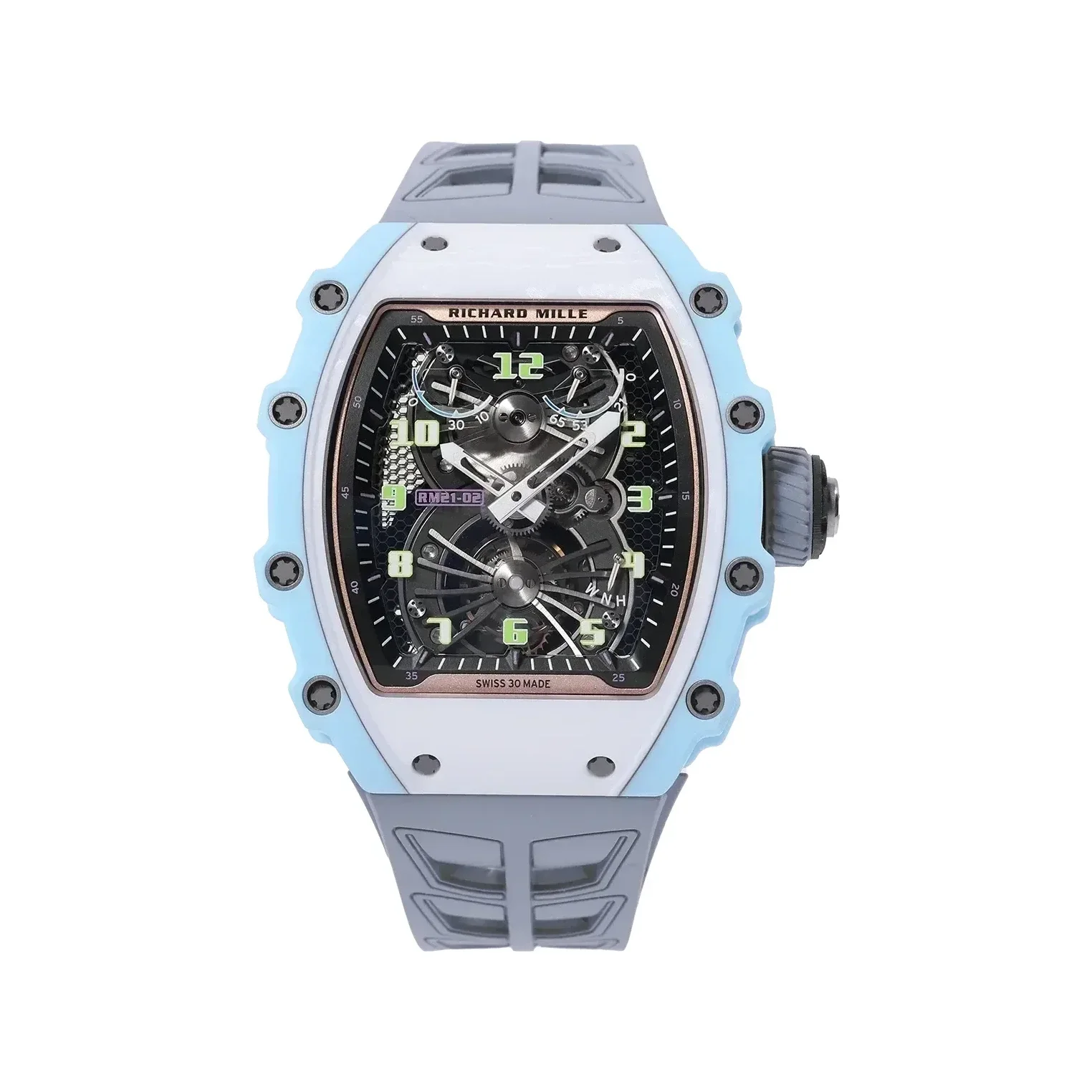

This record carries the RM 21-02 reference, whose case measures 42.68 × 50.12 × 14.30 mm, and shows a pale blue and white layered composite case on a pale blue strap. Richard Mille publishes no RM 21-02 execution under this name: the documented colourways are green Quartz TPT® of December 2022, white Quartz TPT® of November 2023 and Caribbean blue Quartz TPT® of 2024, each of 50 pieces, and this matches none of them.
The calibre and case architecture are those of the RM 21-02: a Carbon TPT® baseplate combined with a honeycombed structure in black-PVD-treated HAYNES 214, with the winding barrel and tourbillon placed centrally on four-armed titanium bridges, and torque, power-reserve and function-selector indications around them.
Key details
Design and engineering
- HAYNES 214 honeycomb baseplateA nickel-chromium-aluminium-iron alloy in a honeycombed geometry, black PVD treated, combined with a Carbon TPT® core. The honeycomb structure is assembled by juxtaposing and laser-welding individual cells.
- Central barrel and tourbillonBoth sit centrally within the aerodynamic structure, carried on titanium bridges with four arms on either side.
- Torque indicatorThe indicator at 1 o’clock reports the internal tension of the mainspring.
- Function selectorA hand at 4 o’clock shows the selected position, changed by the pusher on the crown at 3 o’clock.
- Case constructionTwenty grade 5 titanium spline screws with abrasion-resistant 316L stainless steel washers; the casing ring is eliminated.
Specifications
Technical specifications
| Reference | RM 21-02 |
|---|---|
| Calibre | RM21-02 |
| Movement | Manual winding tourbillon |
| Functions | Hours, minutes, function selector, power-reserve indicator, torque indicator |
| Power reserve | Around 70 hours (± 10%) |
| Frequency | 21,600 vph (3 Hz) |
| Jewels | 27 |
| Balance | Glucydur®, 2 arms, 4 setting screws, moment of inertia 10 mg·cm², angle of lift 53° |
| Balance spring | Elinvar by Nivarox® |
| Shock protection | KIF Elastor KE 160 B28 |
| Barrel shaft | Nickel-free Chronifer® (DIN x 46 Cr 13 + S) |
| Tourbillon diameter | 12.30 mm |
| Balance wheel diameter | 10.00 mm |
| Movement dimensions | 30.20 × 29.20 mm, thickness 7.14 mm |
| Baseplate | Honeycombed orthorhombic HAYNES 214 with Carbon TPT® core, black PVD |
| Case dimensions | 42.68 × 50.12 × 14.30 mm |
| Case shape | Tonneau |
| Case construction | 20 grade 5 titanium spline screws, 316L stainless steel washers, casing ring eliminated |
| Dial | Sapphire, openworked |
| Crystal | Sapphire |
| Water resistance | 50 m |
| Strap | Pale blue rubber |
