- Movement
- Manual winding tourbillon, skeletonised
- Size
- 48.15 × 40.10 × 13.08 mm
Overview
White gold case set with princess-cut diamonds

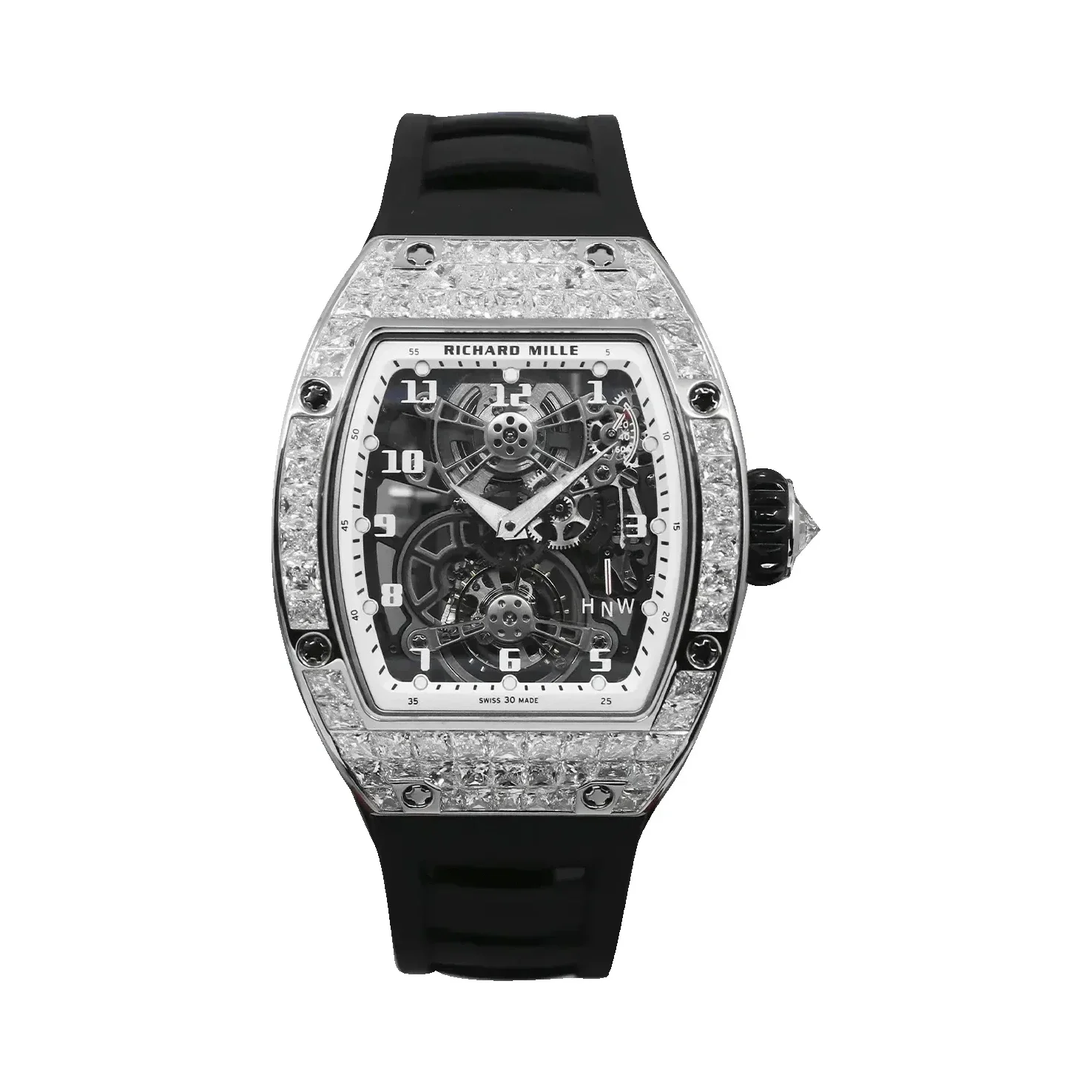

This RM 17-01 carries an 18k white gold case set with princess-cut diamonds across the bezel, the caseband and the flanks, with the crown also set. The princess cut is a square outline with brilliant-style faceting; it is a cut, not a point on the coverage scale used elsewhere in the catalogue.
The movement is the manual-winding tourbillon calibre carried by every RM 17-01: 23 jewels in white gold chatons, 21,600 vph, around 70 hours of power reserve, with the power-reserve scale at 2 o’clock and the function indicator at 4 o’clock.
Key details
Case material18k white gold, set with princess-cut diamonds
SettingBezel, caseband, flanks and crown — stone count and carat weight not published
MovementCalibre RM017, manual winding tourbillon
Design and engineering
- Princess-cut settingStone count, total carat weight and grading are not published for this reference, and whether the setting extends to the caseback is not established.
- Baseplate and bridges in grade 5 titaniumThe alloy is 90% titanium, 6% aluminium and 4% vanadium. Baseplate and bridges were validated separately under resistance testing.
- Tourbillon and balanceThe tourbillon cage measures 12.30 mm and the balance wheel 10.00 mm, with a Glucydur® balance, two arms, four setting screws, a moment of inertia of 10 mg·cm² and a lift angle of 53°.
- Fast-rotating barrelOne revolution every 6 hours instead of 7.5, which reduces periodic internal adhesion of the mainspring.
- Torque-limiting crownThe crown restricts applied torque to protect the winding stem and the mainspring against overwinding.
Specifications
Technical specifications
| Reference | RM 17-01 |
|---|---|
| Calibre | RM017 |
| Movement | Manual winding tourbillon, skeletonised |
| Functions | Hours, minutes, power reserve, function indicator |
| Power reserve | Around 70 hours (± 10%) |
| Frequency | 21,600 vph (3 Hz) |
| Jewels | 23, set in white gold chatons |
| Balance | Glucydur®, 2 arms, 4 setting screws, moment of inertia 10 mg·cm², angle of lift 53° |
| Balance spring | Elinvar by Nivarox® |
| Shock protection | KIF Elastor KE 160 B28 |
| Barrel shaft | Nickel-free Chronifer® (DIN x 46 Cr 13 + S) |
| Barrel | Fast-rotating, 1 revolution per 6 hours instead of 7.5 |
| Tourbillon diameter | 12.30 mm |
| Balance wheel diameter | 10.00 mm |
| Movement dimensions | 31.20 × 29.45 mm, thickness 4.65 mm |
| Baseplate and bridges | Grade 5 titanium |
| Case dimensions | 48.15 × 40.10 × 13.08 mm |
| Case shape | Tonneau |
| Case material | 18k white gold |
| Gem setting | Princess-cut diamonds, bezel and caseband; crown set |
| Case construction | Tripartite, 12 grade 5 titanium spline screws, 316L stainless steel washers, 2 nitrile O-ring seals |
| Crystal | Sapphire |
| Water resistance | 50 m |
| Strap | Black rubber |
