- Movement
- Manual winding tourbillon, skeletonised
- Size
- 48.15 × 40.10 × 13.08 mm
Overview

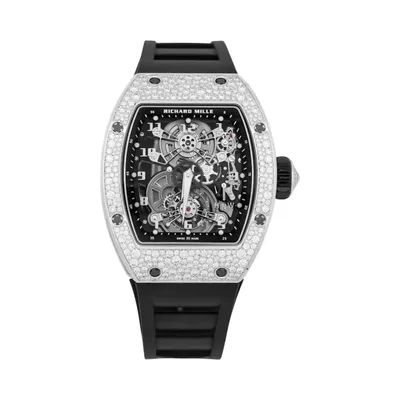

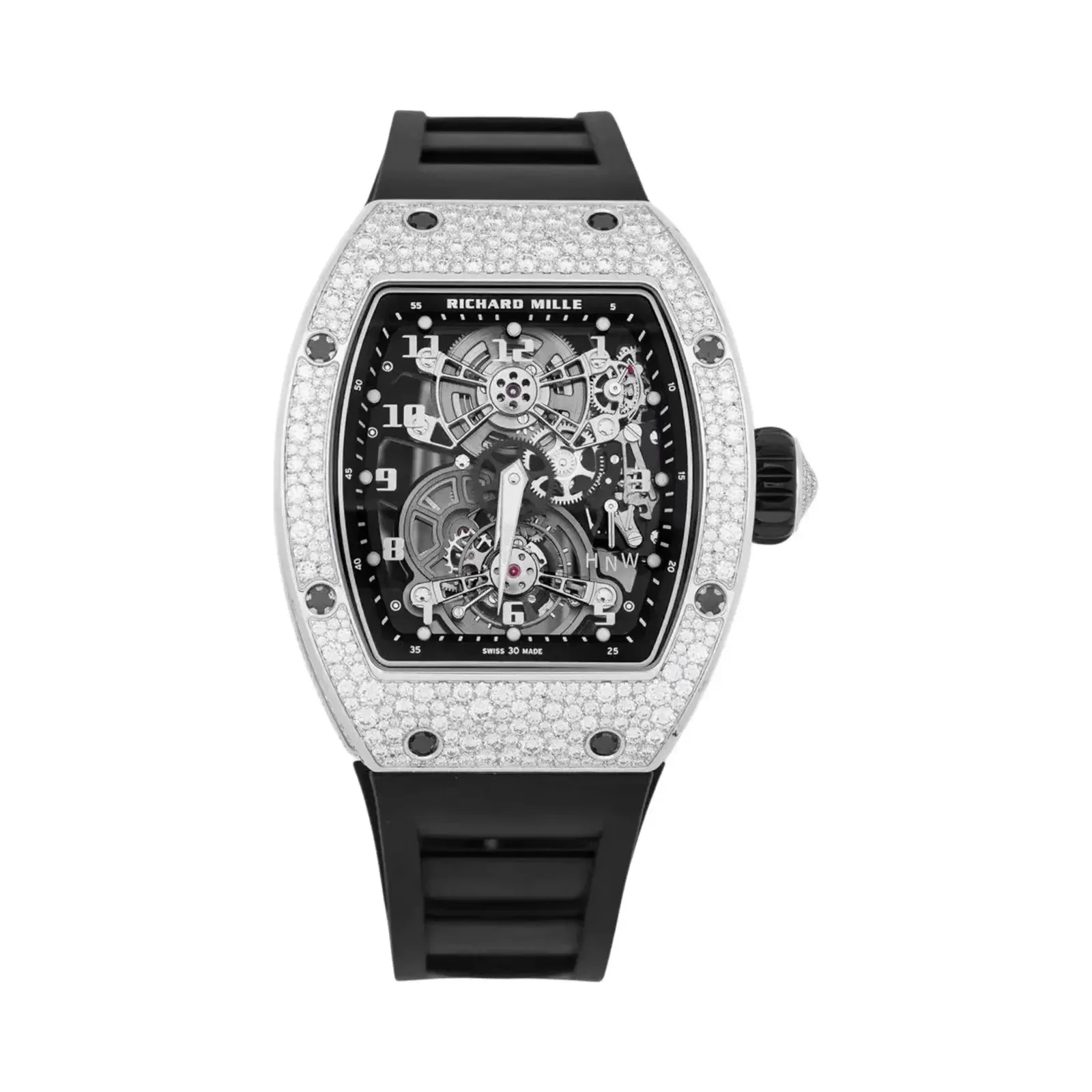

White gold case with snow setting

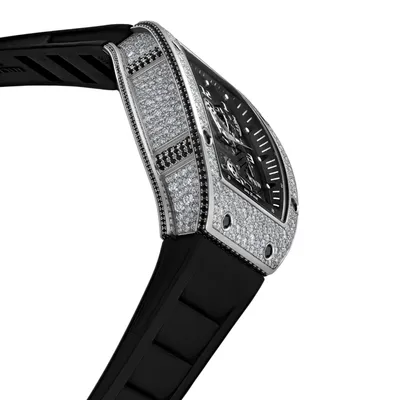

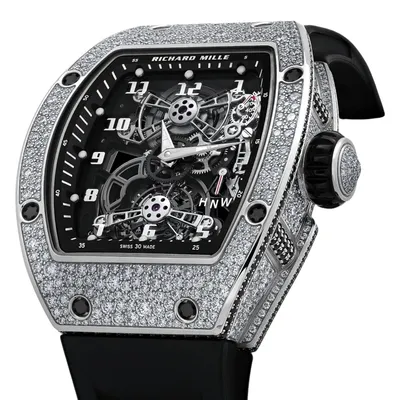

The snow setting on this RM 17-01 covers the bezel, caseband and flanks with brilliant-cut diamonds of varying diameter, arranged so that the metal between them is not visible as a regular grid. Snow setting is a technique rather than a coverage tier: stone sizes are chosen and placed individually to fill the surface.
The case and movement are otherwise those of the standard RM 17-01 — a tonneau case of 48.15 × 40.10 × 13.08 mm around the manual-winding tourbillon calibre, with around 70 hours of power reserve.
Key details
Case material18k white gold, snow-set with diamonds
SettingBezel, caseband and flanks — stone count and carat weight not published
MovementCalibre RM017, manual winding tourbillon
Design and engineering
- Snow settingStones of differing diameters are placed individually to cover the surface without a repeating pattern. Stone count and carat weight are not published for this reference.
- Power-reserve indicatorA scale at 2 o’clock shows the hours of energy remaining in the mainspring.
- Function indicatorA hand at 4 o’clock shows winding, neutral or hand-setting as the crown is drawn out.
- Barrel pawl with progressive recoilThe pawl gives a winding gain of around 20%, chiefly at the start of winding, and distributes mainspring tension more evenly.
- Safety system with blocking gearThe system protects the balance roller jewel and the winding barrel from overwinding.
Specifications
Technical specifications
| Reference | RM 17-01 |
|---|---|
| Calibre | RM017 |
| Movement | Manual winding tourbillon, skeletonised |
| Functions | Hours, minutes, power reserve, function indicator |
| Power reserve | Around 70 hours (± 10%) |
| Frequency | 21,600 vph (3 Hz) |
| Jewels | 23, set in white gold chatons |
| Balance | Glucydur®, 2 arms, 4 setting screws, moment of inertia 10 mg·cm², angle of lift 53° |
| Balance spring | Elinvar by Nivarox® |
| Shock protection | KIF Elastor KE 160 B28 |
| Barrel shaft | Nickel-free Chronifer® (DIN x 46 Cr 13 + S) |
| Barrel | Fast-rotating, 1 revolution per 6 hours instead of 7.5 |
| Tourbillon diameter | 12.30 mm |
| Balance wheel diameter | 10.00 mm |
| Movement dimensions | 31.20 × 29.45 mm, thickness 4.65 mm |
| Baseplate and bridges | Grade 5 titanium |
| Case dimensions | 48.15 × 40.10 × 13.08 mm |
| Case shape | Tonneau |
| Case material | 18k white gold |
| Gem setting | Snow setting, brilliant-cut diamonds; bezel, caseband and flanks |
| Case construction | Tripartite, 12 grade 5 titanium spline screws, 316L stainless steel washers, 2 nitrile O-ring seals |
| Crystal | Sapphire |
| Water resistance | 50 m |

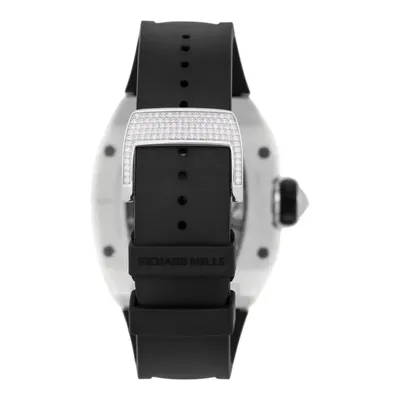

| Strap | Black rubber |
