- Movement
- Manual winding tourbillon, skeletonised
- Size
- 48.15 × 40.10 × 13.08 mm
Overview

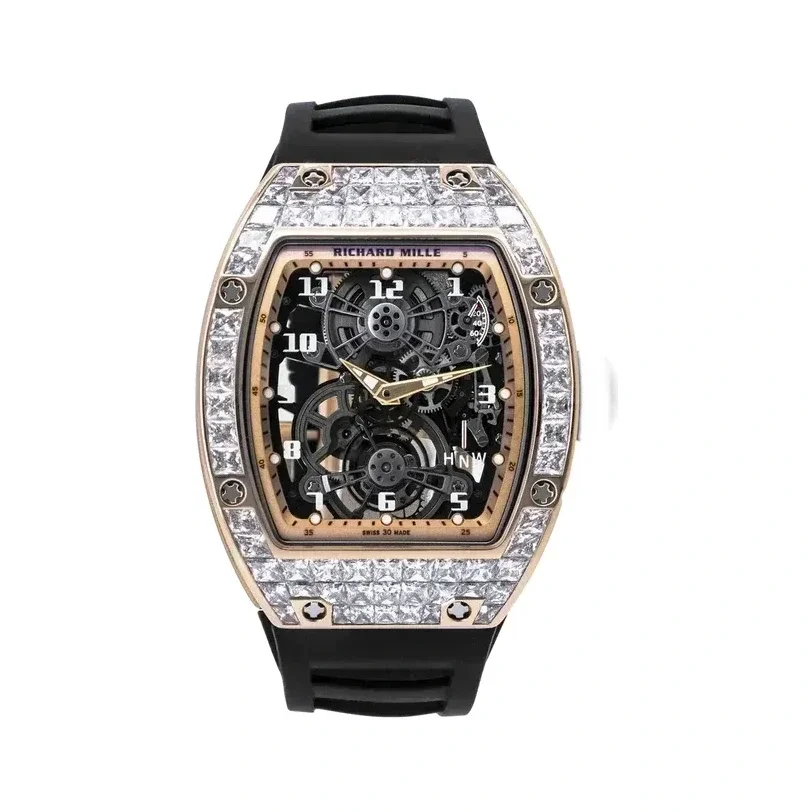

Red gold case set with princess-cut diamonds
This RM 17-01 carries a 5N red gold case set with princess-cut diamonds, the setting running across the bezel and continuing over the caseband and the flanks, with the crown also set. The princess cut is a square step-and-brilliant cut; it is a cut rather than a point on a coverage scale.
The movement is the RM017 manual-winding tourbillon, unchanged in specification: 23 jewels in white gold chatons, 21,600 vph, around 70 hours of power reserve, with the power-reserve scale at 2 o’clock and the function indicator at 4 o’clock.
Key details
Case material5N red gold, set with princess-cut diamonds
SettingBezel, caseband, flanks and crown — stone count and carat weight not published
MovementCalibre RM017, manual winding tourbillon
Design and engineering
- Princess-cut settingThe princess cut is square in outline with brilliant-style faceting. Stone count, total carat weight and grading are not published for this reference.
- Gold case constructionThe case remains tripartite, assembled with 12 grade 5 titanium spline screws and abrasion-resistant 316L stainless steel washers, with two nitrile O-ring seals.
- Baseplate and bridges in grade 5 titaniumThe alloy is 90% titanium, 6% aluminium and 4% vanadium; baseplate and bridges were validated separately under resistance testing.
- Fast-rotating barrelOne revolution every 6 hours instead of 7.5, improving the ratio between power reserve and rate stability.
- Torque-limiting crownThe crown restricts applied torque to protect the winding stem and mainspring.
The reference
Technical specifications
| Reference | RM 17-01 |
|---|---|
| Calibre | RM017 |
| Movement | Manual winding tourbillon, skeletonised |
| Functions | Hours, minutes, power reserve, function indicator |
| Power reserve | Around 70 hours (± 10%) |
| Frequency | 21,600 vph (3 Hz) |
| Jewels | 23, set in white gold chatons |
| Balance | Glucydur®, 2 arms, 4 setting screws, moment of inertia 10 mg·cm², angle of lift 53° |
| Balance spring | Elinvar by Nivarox® |
| Shock protection | KIF Elastor KE 160 B28 |
| Barrel | Fast-rotating, 1 revolution per 6 hours instead of 7.5 |
| Tourbillon diameter | 12.30 mm |
| Movement dimensions | 31.20 × 29.45 mm, thickness 4.65 mm |
| Baseplate and bridges | Grade 5 titanium |
| Case dimensions | 48.15 × 40.10 × 13.08 mm |
| Case shape | Tonneau |
| Case material | 5N red gold |
| Gem setting | Princess-cut diamonds, bezel and caseband; crown set |
| Case construction | Tripartite, 12 grade 5 titanium spline screws, 316L stainless steel washers, 2 nitrile O-ring seals |
| Crystal | Sapphire |
| Water resistance | 50 m |
| Strap | Black rubber |
