- Size
- 50.00 × 42.70 × 14.55 mm
Overview

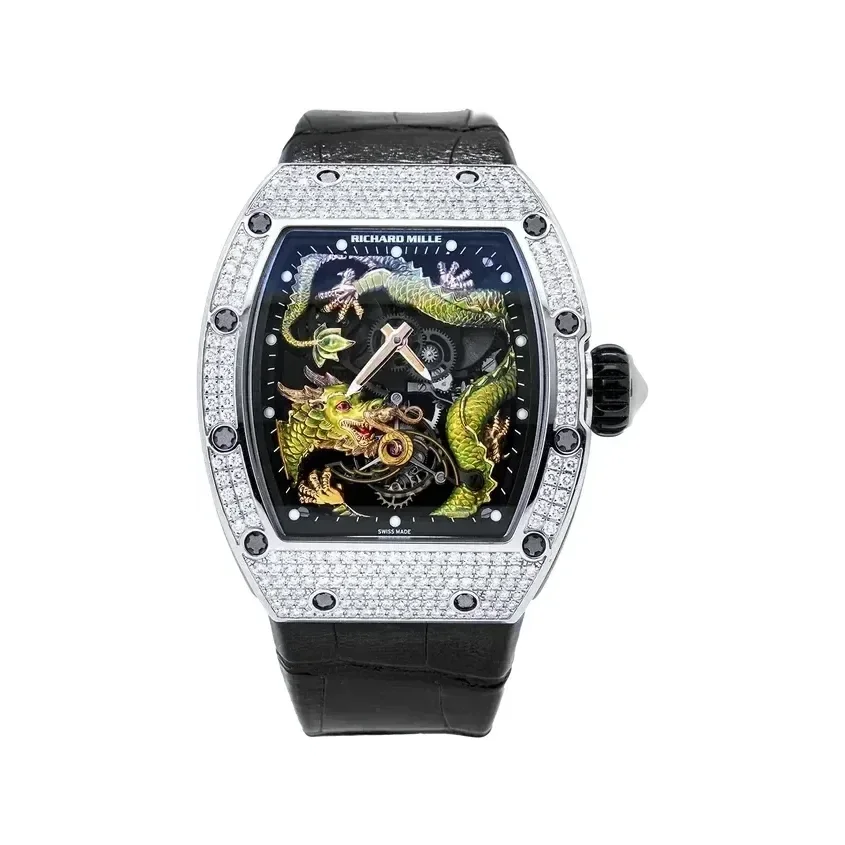

A fully set white gold case with a green micro-painted dragon
This is a gem-set execution of the RM 057 Dragon–Jackie Chan: an 18K white gold case with diamond setting across the bezel, caseband and lugs, a black onyx baseplate, and a dragon finished in green and yellow rather than plain gold. The strap is black alligator.
Richard Mille’s specification for the RM 057 records that on specific versions the dragon’s scales are hand-painted using micro-painting techniques to raise the level of detail; this is one of those versions. The base construction is unchanged — calibre RM057, black onyx baseplate, grade 5 titanium bridges with black PVD, and the rotating engraved signature disc.
Key details
Case18K white gold with diamond setting
DragonHand-engraved gold with micro-painted scales
MovementCalibre RM057, manual winding tourbillon
Design and engineering
- Calibre RM057Manual winding tourbillon with hours, minutes and power-reserve indicator, running on 21 jewels at 21,600 vph (3 Hz), the reserve shown by a red line on a moving disc between 10 and 11 o’clock.
- Micro-painted dragonThe gold dragon is hand-engraved and, on versions such as this one, its scales are coloured by hand using micro-painting. The body twists around the bridges and barrel, with a claw clasping the tourbillon.
- Black onyx baseplateThe baseplate is cut from black onyx rather than metal — a cryptocrystalline quartz chalcedony of silicon dioxide. A disc set into its side carries an engraved Jackie Chan signature and rotates once every 60 seconds, in step with the tourbillon.
- Diamond settingStones are set across the bezel, caseband and lugs. Richard Mille’s RM 057 specification refers to stones set in white gold bezel settings.
- Variable-inertia free-sprung balanceThere is no index plate; adjustment is made with four setting screws on a Glucydur balance with two arms, a moment of inertia of 10 mg·cm² and an angle of lift of 53°.
- Torque-limiting crownFitted to prevent accidental overwinding, which could damage the winding stem or place extreme pressure on the mainspring barrel.
Specifications
Technical specifications
| Reference | RM 057 |
|---|---|
| Calibre | RM057, manual winding tourbillon |
| Functions | Hours, minutes, power-reserve indicator |
| Power reserve | Circa 48 hours, differential system, disc between 10 and 11 o’clock |
| Frequency | 21,600 vph (3 Hz) |
| Jewels | 21 |
| Movement dimensions | 32.80 × 29.00 mm |
| Movement thickness | 5.17 mm |
| Tourbillon diameter | 12.30 mm |
| Baseplate | Black onyx |
| Bridges | Grade 5 titanium, black PVD |
| Balance | Glucydur, 2 arms, 4 setting screws, inertia 10 mg·cm², lift angle 53° |
| Balance spring | Elinvar by Nivarox |
| Shock protection | KIF Elastor KE 160 B28 |
| Crown | Torque-limiting |
| Case dimensions | 50.00 × 42.70 × 14.55 mm |
| Case assembly | 20 grade 5 titanium spline screws, 316L washers |
| Crystal | Sapphire, 1,800 Vickers, anti-glare both sides, 1.50 mm |
| Caseback | Sapphire, anti-glare both sides, 1.20 mm centre / 2.04 mm outer edges |
| Water resistance | 50 m, two nitrile O-ring seals |
| Case material | 18K white gold |
| Gem-setting | Diamond, bezel, caseband and lugs |
| Dragon | Gold, hand-engraved, scales hand-painted |
| Strap | Alligator |
Buying with HYPA
Purchase with confidence
- Manufacturer warranty confirmed from the warranty card
- Insured worldwide delivery
- Payment by bank transfer or cryptocurrency
- Registered Australian dealerHYPA International Pty Ltd · Victorian Second-Hand Dealer Licence SHD-0018017.
- Direct specialist supportSpeak with the HYPA team before, during and after the purchase.
