- Size
- 50.00 × 42.70 × 14.55 mm
- Edition
- 36 pieces in 18K white or red gold
Overview
A hand-engraved gold dragon on a black onyx baseplate

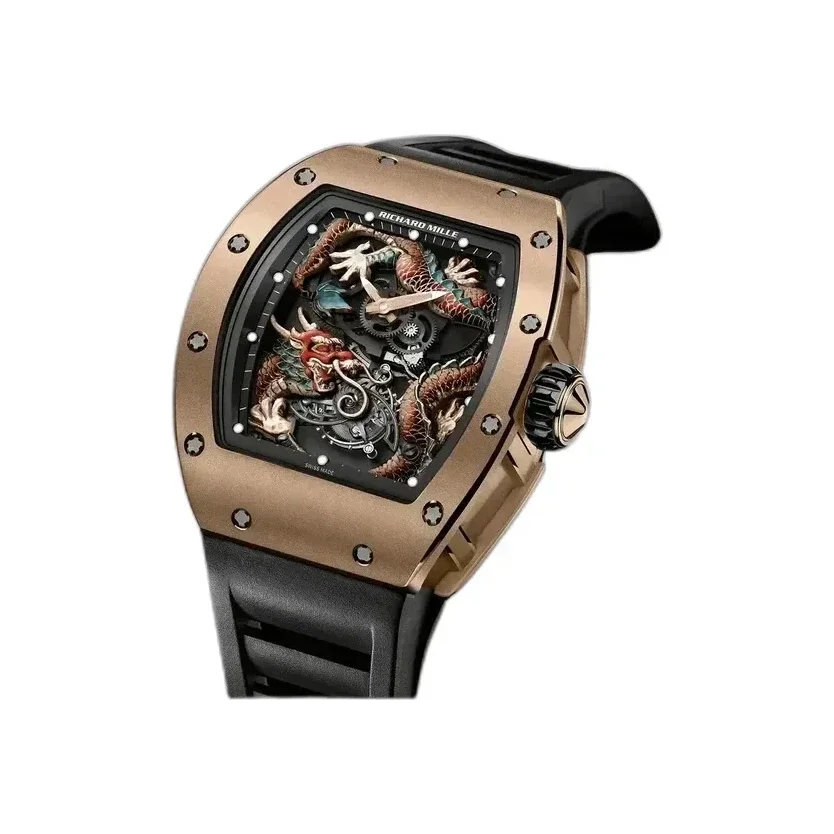

The RM 057 Dragon–Jackie Chan was presented in 2012, the Year of the Dragon, in a limited edition of 36 pieces cased in 18K white or red gold. This record holds the red gold execution, on a black strap.
The movement baseplate is black onyx. A dragon in 18K gold, entirely hand-engraved, is fitted within the movement so that its body twists around the bridges and barrel, with the tourbillon held in one claw. A disc set into the side of the onyx baseplate carries an engraved Jackie Chan signature and rotates once every 60 seconds, in step with the tourbillon.
Key details
Edition36 pieces in 18K white or red gold
MovementCalibre RM057, manual winding tourbillon
Introduced2012
Design and engineering
- Calibre RM057A manual winding tourbillon with hours, minutes and a power-reserve indicator. The movement measures 32.80 × 29.00 mm by 5.17 mm thick, runs on 21 jewels at 21,600 vph (3 Hz), and carries a tourbillon 12.30 mm in diameter.
- Black onyx baseplateThe baseplate is cut from black onyx rather than metal — a cryptocrystalline quartz chalcedony of silicon dioxide. A disc set into its side carries an engraved Jackie Chan signature and rotates once every 60 seconds, in step with the tourbillon.
- Dragon entwined in the movementThe dragon is 18K gold, hand-engraved throughout; Richard Mille states that no fewer than 20 engravers are involved in producing the pattern. Its body twists around the bridges and barrel with the tourbillon held in one claw, and the whole piece is 5.5 mm thick. On specific versions the scales are finished by hand using micro-painting.
- Variable-inertia free-sprung balanceThere is no index plate; adjustment is made with four setting screws on a Glucydur balance with two arms, a moment of inertia of 10 mg·cm² and an angle of lift of 53°.
- Barrel pawl with progressive recoilRichard Mille specifies a winding gain of around 20%, particularly at the start of winding, and a more even distribution of the mainspring’s internal tension.
- Case productionThe tonneau case requires 47 stamping operations including 21 striking, four hours of machining and 255 milling procedures, followed by a further day of grinding, satin brushing and polishing.
Specifications
Technical specifications
| Reference | RM 057 |
|---|---|
| Calibre | RM057, manual winding tourbillon |
| Functions | Hours, minutes, power-reserve indicator |
| Power reserve | Circa 48 hours, differential system, disc between 10 and 11 o’clock |
| Frequency | 21,600 vph (3 Hz) |
| Jewels | 21 |
| Movement dimensions | 32.80 × 29.00 mm |
| Movement thickness | 5.17 mm |
| Tourbillon diameter | 12.30 mm |
| Baseplate | Black onyx |
| Bridges | Grade 5 titanium, black PVD |
| Balance | Glucydur, 2 arms, 4 setting screws, inertia 10 mg·cm², lift angle 53° |
| Balance spring | Elinvar by Nivarox |
| Shock protection | KIF Elastor KE 160 B28 |
| Crown | Torque-limiting |
| Case dimensions | 50.00 × 42.70 × 14.55 mm |
| Case assembly | 20 grade 5 titanium spline screws, 316L washers |
| Crystal | Sapphire, 1,800 Vickers, anti-glare both sides, 1.50 mm |
| Caseback | Sapphire, anti-glare both sides, 1.20 mm centre / 2.04 mm outer edges |
| Water resistance | 50 m, two nitrile O-ring seals |
| Balance wheel diameter | 9.12 mm |
| Barrel arbour | Nickel-free Chronifer (DIN x 46 Cr 13 + S) |
| Barrel | Barrel pawl with progressive recoil |
| Case material | 18K red gold |
| Interior flanges | Upper and lower, black grade 5 titanium |
| Dragon | 18K gold, hand-engraved, total thickness 5.5 mm |
| Strap | Rubber |
| Edition | 36 pieces in 18K white or red gold |
| Introduced | 2012 |
