- Year
- 2016
- Condition
- Very good
- Accessories
- Box and papers
- Case
- Tripartite tonneau
- Movement
- Automatic winding, skeletonised
- Size
- 52.63 × 34.40 × 13.00 mm
Overview

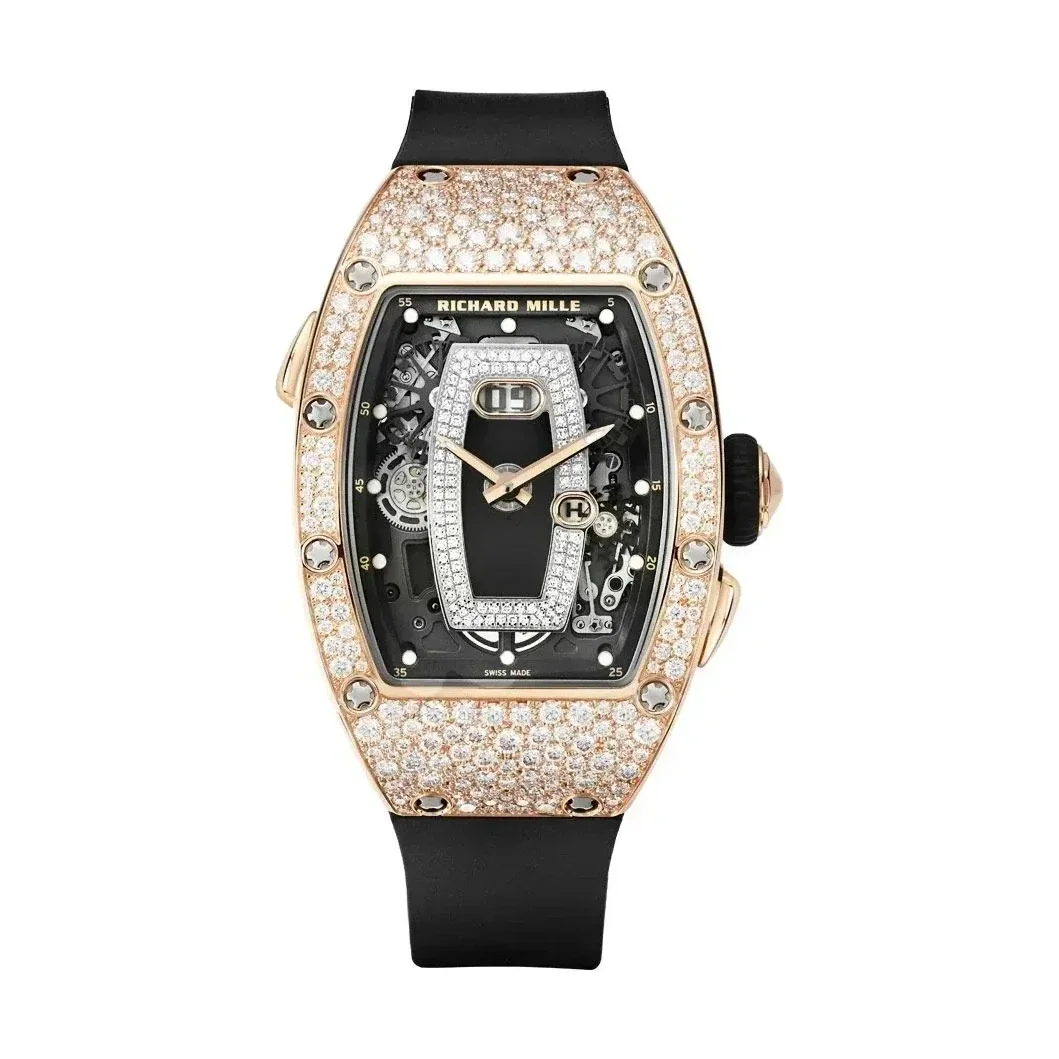

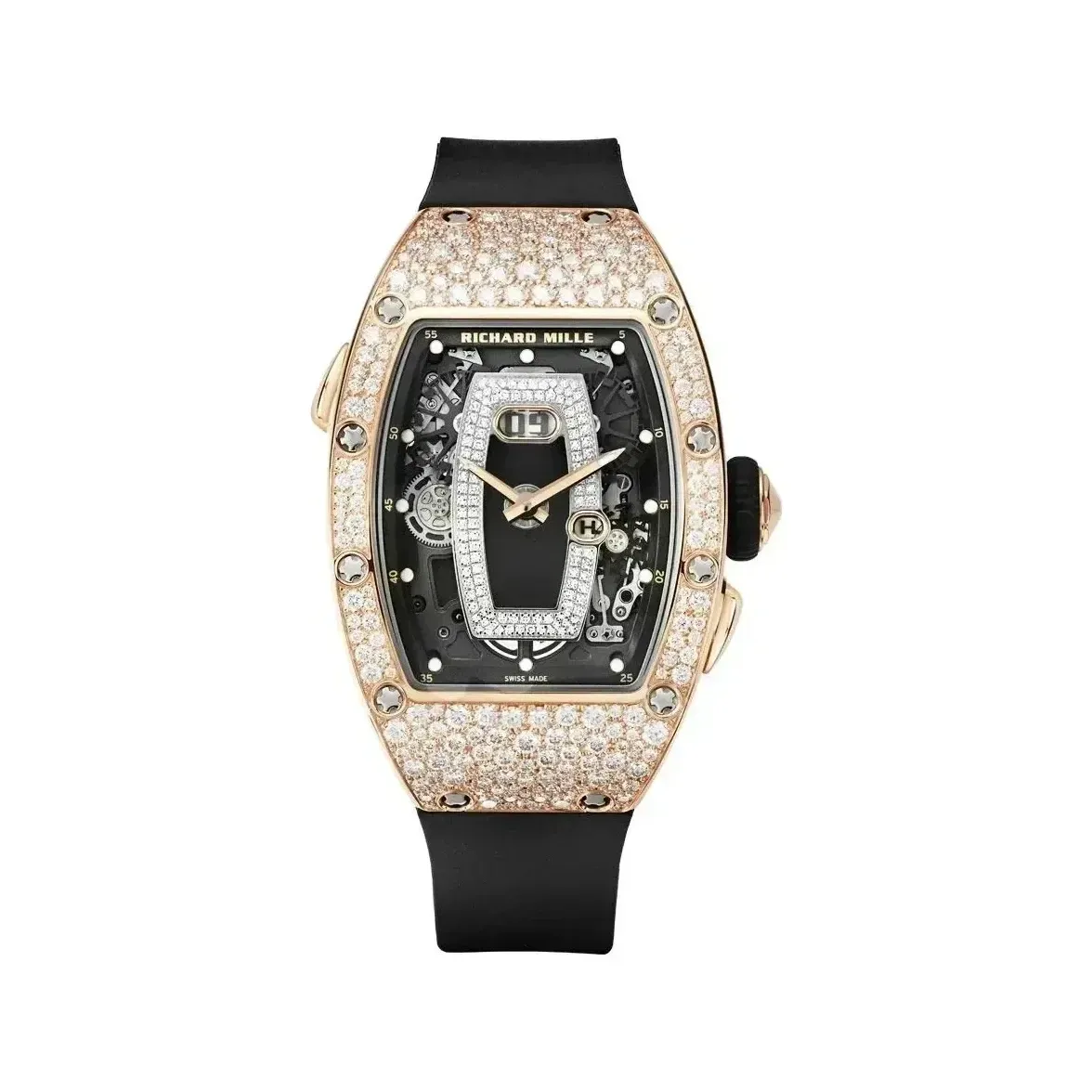

Snow-set red gold case with a white set centre frame
The RM 037 runs the CRMA1, Richard Mille’s first in-house calibre, with hours, minutes, an oversize date under 12 o’clock and a function selector. The tripartite tonneau case is assembled from bezel, caseband and caseback, each with a cambered profile that has to marry precisely to seal the movement.
This execution is red gold, snow set across the bezel and caseband. The set dial-centre frame is white metal, framing a black panel, and the hands are red gold against a black rubber strap.
Key details
MovementCalibre CRMA1, skeletonised automatic winding
Power reserveAround 50 hours (± 10%)
SettingSnow setting on the bezel and caseband
Design and engineering
- Snow settingStones of differing diameters are placed to fill the surface without a repeating grid, so that no metal shows between them. Snow setting is a technique rather than a point on a coverage scale.
- Oversize dateSemi-instantaneous, placed horizontally under 12 o’clock and driven by two skeletonised calendar discs over a white field.
- Function selectorA push-button at 4 o’clock selects winding, neutral and hand-setting with a single push, in the manner of a gearbox; an aperture alongside shows W, N or H. A second push-button at 10 o’clock corrects the date.
- Patented stem-crown assemblyThe crown is part of the case rather than the movement, so no classical crown attachment penetrates to the heart of the calibre. It is sealed with an Alcryn® O-ring and collar.
- Variable-geometry rotorHeavy external outside edge and edge ring in ARCAP, weight segment in heavy metal, ceramic ball bearings and a OneWay® winding system, allowing the winding rate to be set to the wearer’s activity level.
- Fast-rotating barrelOne revolution in five hours rather than the conventional 7.5, which improves the mainspring’s delta curve.
Specifications
Technical specifications
| Reference | RM 037 |
|---|---|
| Calibre | CRMA1, in-house |
| Movement | Automatic winding, skeletonised |
| Functions | Hours, minutes, oversize date, function selector, variable-geometry rotor |
| Power reserve | Around 50 hours (± 10%) |
| Movement dimensions | 28.00 × 22.90 mm, thickness 5.79 mm |
| Jewels | 25 |
| Balance | CuBe, 4 arms, 4 setting screws, moment of inertia 7.5 mg·cm², angle of lift 50° |
| Frequency | 28,800 vph (4 Hz) |
| Balance spring | AK3 |
| Shock protection | Incabloc 908.22.211.100 (transparent) |
| Escapement wheel jewels | Rubifix (transparent) |
| Baseplate and bridges | Microblasted grade 5 titanium, electroplasma treated |
| Barrel | Fast rotating, 1 revolution in 5 hours |
| Rotor | Variable geometry; ARCAP outside edge and edge ring, heavy metal weight segment, ceramic ball bearings, OneWay® winding system |
| Going train | 20° pressure angle on the teeth |
| Case | Tripartite tonneau |
| Case dimensions | 52.63 × 34.40 × 13.00 mm |
| Case material | Red gold |
| Setting | Snow setting on the bezel and caseband |
| Dial centre | Black panel in a set white metal frame |
| Case assembly | 20 grade 5 titanium spline screws, 316L stainless steel washers, 2 Nitrile O-ring seals |
| Water resistance | 50 m |
| Strap | Black rubber |
