- Movement
- Manual winding tourbillon, skeletonised
- Size
- 49.80 × 38.00 × 8.70 mm
Overview

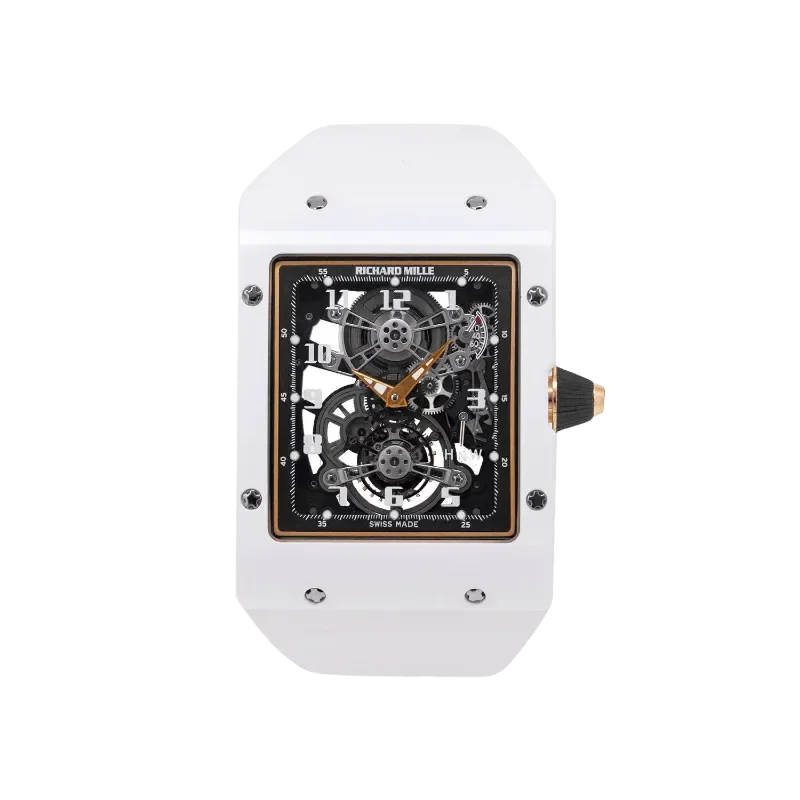

ATZ white ceramic case with red gold caseband
This version of the RM 017 pairs a white ceramic case with a red gold caseband. ATZ is Richard Mille’s designation for white ceramic, stated on the brand’s RM 07-01 material. Case dimensions, movement and construction are shared with the other RM 017 variants.
The calibre RM017 is a manual-winding tourbillon movement with hours, minutes, a power-reserve scale at 2 o’clock and a function indicator at 4 o’clock. The movement measures 4.65 mm in thickness within a case 8.70 mm deep.
Key details
Case materialsATZ white ceramic with 5N red gold caseband
MovementCalibre RM017, manual winding tourbillon
Case dimensions49.80 × 38.00 × 8.70 mm
Design and engineering
- ATZ white ceramicATZ is the designation Richard Mille applies to white ceramic, distinct from TZP used for black and coloured ceramic.
- Modular time-setting mechanismThe time-setting assembly is mounted against the caseback rather than within the movement, so it can be replaced without disturbing the baseplate, and can be removed from the back without lifting hands or dial.
- Wheel-based time settingThe setting system replaces sliding friction with rolling friction through a wheel-based arrangement.
- Free-sprung balance with variable inertiaThe balance carries adjustable weights in place of a regulator index, which improves reliability under shock and during assembly.
- Torque-limiting crownThe crown limits applied torque to prevent overwinding damage to the stem or excessive pressure on the mainspring.
Specifications
Technical specifications
| Reference | RM 017 |
|---|---|
| Calibre | RM017 |
| Movement | Manual winding tourbillon, skeletonised |
| Functions | Hours, minutes, power reserve, function indicator |
| Power reserve | Circa 70 hours, indicated on a scale at 2 o’clock |
| Frequency | 21,600 vph (3 Hz) |
| Jewels | 23 |
| Movement dimensions | 31.20 × 29.45 mm, thickness 4.65 mm |
| Baseplate and bridges | Ribbed titanium with black PVD coating |
| Barrel | Fast-rotating, 1 revolution per 6 hours instead of 7.5 |
| Case dimensions | 49.80 × 38.00 × 8.70 mm |
| Case shape | Rectangular |
| Bezel and caseback | ATZ white ceramic |
| Caseband | 5N red gold |
| Crystal | Sapphire |
| Strap | Rubber |
