- Movement
- Manual winding tourbillon, skeletonised
- Size
- 48.15 × 40.10 × 13.08 mm
Overview
Black ceramic bezel and caseback with red gold caseband

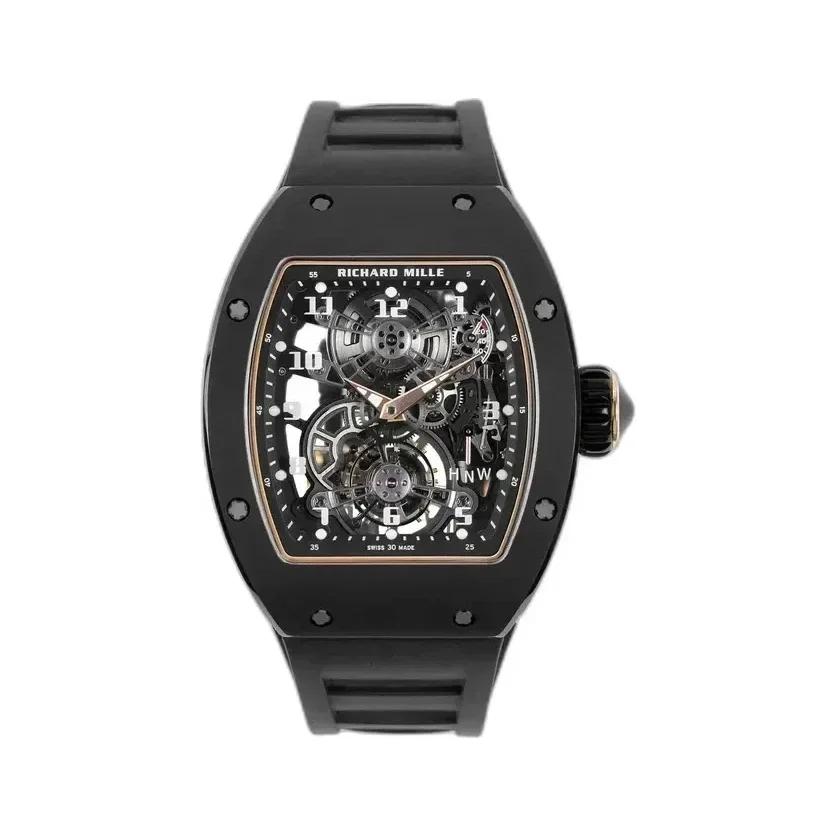

This RM 17-01 carries a black ceramic case with a red gold caseband and a red gold crown. TZP is Richard Mille’s designation for black and coloured ceramic.
The movement, case dimensions and case construction follow the RM 17-01 specification: tonneau case of 48.15 × 40.10 × 13.08 mm, calibre RM017, 23 jewels, 3 Hz, around 70 hours of power reserve.
Key details
Case materialsBlack TZP ceramic with red gold caseband
MovementCalibre RM017, manual winding tourbillon
Case dimensions48.15 × 40.10 × 13.08 mm
Design and engineering
- TZP ceramicTZP is a tetragonal zirconia polycrystal ceramic. Richard Mille uses the designation for black and coloured ceramic cases and reserves ATZ for white.
- Power-reserve indicatorA scale at 2 o’clock shows the hours of energy remaining before rewinding.
- Function indicatorA hand at 4 o’clock shows the position selected as the crown is drawn out: winding, neutral or hand-setting.
- Central involute profileThe winding-barrel teeth and third-wheel pinion use a central involute profile giving a 20° pressure angle, which compensates for variation in going-train engagement.
- Ceramic endstone for the tourbillon cageThe endstone reduces wear at the tourbillon cage bearing.
Specifications
Technical specifications
| Reference | RM 17-01 |
|---|---|
| Calibre | RM017 |
| Movement | Manual winding tourbillon, skeletonised |
| Functions | Hours, minutes, power reserve, function indicator |
| Power reserve | Around 70 hours (± 10%) |
| Frequency | 21,600 vph (3 Hz) |
| Jewels | 23, set in white gold chatons |
| Balance | Glucydur®, 2 arms, 4 setting screws, moment of inertia 10 mg·cm², angle of lift 53° |
| Balance spring | Elinvar by Nivarox® |
| Shock protection | KIF Elastor KE 160 B28 |
| Barrel shaft | Nickel-free Chronifer® (DIN x 46 Cr 13 + S) |
| Barrel | Fast-rotating, 1 revolution per 6 hours instead of 7.5 |
| Tourbillon diameter | 12.30 mm |
| Balance wheel diameter | 10.00 mm |
| Movement dimensions | 31.20 × 29.45 mm, thickness 4.65 mm |
| Baseplate and bridges | Grade 5 titanium |
| Case dimensions | 48.15 × 40.10 × 13.08 mm |
| Case shape | Tonneau |
| Bezel and caseback | Black TZP ceramic |
| Caseband | Red gold |
| Case construction | Tripartite, 12 grade 5 titanium spline screws, 316L stainless steel washers, 2 nitrile O-ring seals |
| Crystal | Sapphire |
| Water resistance | 50 m |
| Strap | Rubber |
