- Movement
- Manual winding tourbillon, skeletonised
- Size
- 48.15 × 40.10 × 13.08 mm
Overview

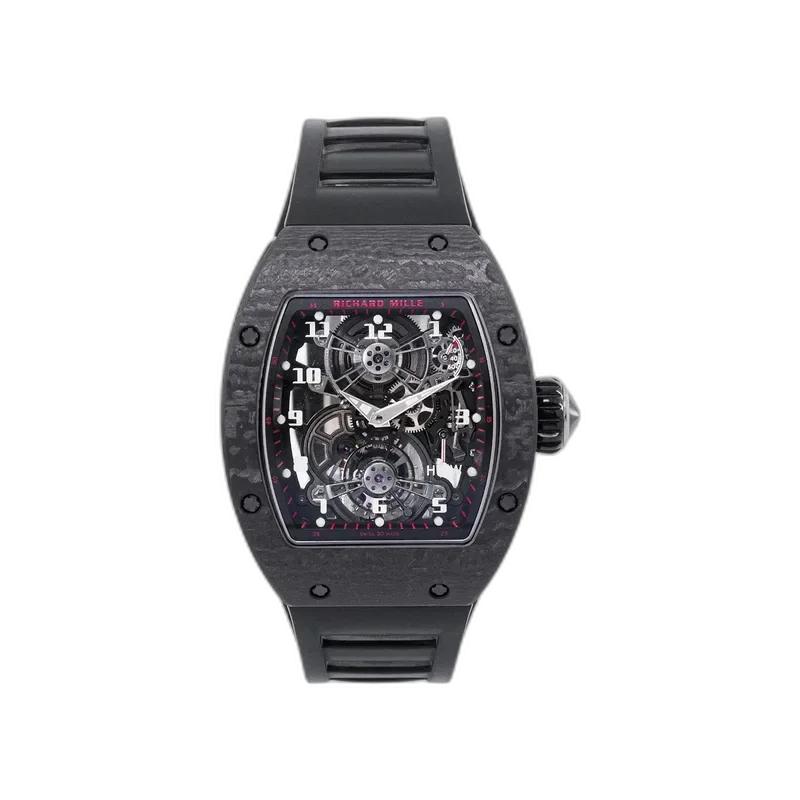

Carbon TPT® tonneau case with the RM017 tourbillon calibre
The RM 17-01 places the RM017 tourbillon calibre in a tonneau-shaped case measuring 48.15 × 40.10 × 13.08 mm. The movement is unchanged in specification from the rectangular RM 017: manual winding, 23 jewels set in white gold chatons, 3 Hz, and a power reserve of around 70 hours.
This version uses Carbon TPT® for the case. The material is built from carbon filaments laid in layers at alternating angles and impregnated with resin; machining exposes the layer structure as banding across the case surfaces.
Key details
Case materialCarbon TPT®
MovementCalibre RM017, manual winding tourbillon
Case dimensions48.15 × 40.10 × 13.08 mm
Design and engineering
- Baseplate and bridges in grade 5 titaniumThe alloy is 90% titanium, 6% aluminium and 4% vanadium. The skeletonised baseplate and bridges were subjected to complete validation testing to establish their resistance.
- Tourbillon and balanceThe tourbillon cage measures 12.30 mm in diameter and the balance 10.00 mm, running at 21,600 vph with a Glucydur® balance, two arms, four setting screws, moment of inertia 10 mg·cm² and a lift angle of 53°.
- Fast-rotating barrelThe barrel completes one revolution every 6 hours instead of 7.5, reducing periodic internal mainspring adhesion.
- Barrel pawl with progressive recoilThe pawl produces a winding gain of around 20%, particularly at the start of winding, and distributes the mainspring’s internal tension more evenly.
- Safety system with blocking gearThis protects the roller jewel of the balance and the winding barrel against overwinding.
- Tripartite caseThe case is assembled with 12 grade 5 titanium spline screws and abrasion-resistant 316L stainless steel washers, with water resistance of 50 metres from two nitrile O-ring seals. No casing ring is used; the movement sits on chassis mounting rubbers (ISO SW) fixed by grade 5 titanium screws.
Specifications
Technical specifications
| Reference | RM 17-01 |
|---|---|
| Calibre | RM017 |
| Movement | Manual winding tourbillon, skeletonised |
| Functions | Hours, minutes, power reserve, function indicator |
| Power reserve | Around 70 hours (± 10%) |
| Frequency | 21,600 vph (3 Hz) |
| Jewels | 23, set in white gold chatons |
| Balance | Glucydur®, 2 arms, 4 setting screws, moment of inertia 10 mg·cm², angle of lift 53° |
| Balance spring | Elinvar by Nivarox® |
| Shock protection | KIF Elastor KE 160 B28 |
| Barrel shaft | Nickel-free Chronifer® (DIN x 46 Cr 13 + S) |
| Barrel | Fast-rotating, 1 revolution per 6 hours instead of 7.5 |
| Tourbillon diameter | 12.30 mm |
| Balance wheel diameter | 10.00 mm |
| Movement dimensions | 31.20 × 29.45 mm, thickness 4.65 mm |
| Baseplate and bridges | Grade 5 titanium |
| Case dimensions | 48.15 × 40.10 × 13.08 mm |
| Case shape | Tonneau |
| Case material | Carbon TPT® |
| Case construction | Tripartite, 12 grade 5 titanium spline screws, 316L stainless steel washers, 2 nitrile O-ring seals |
| Crystal | Sapphire |
| Water resistance | 50 m |
| Strap | Rubber |
