- Size
- 42.70 × 50.23 mm
Overview
A composite case replacing the ceramic

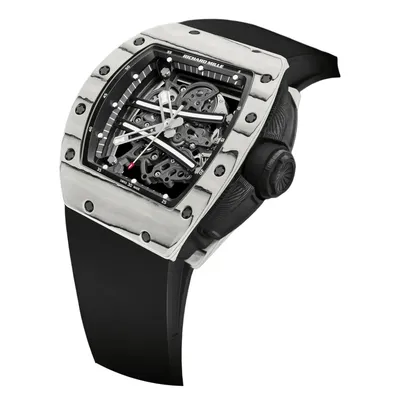

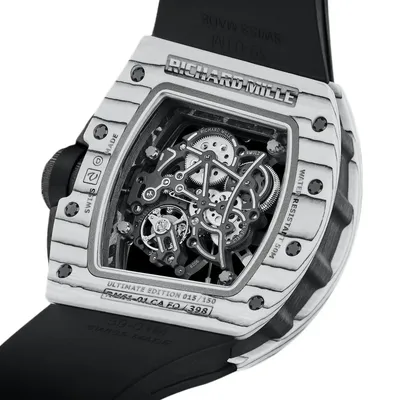

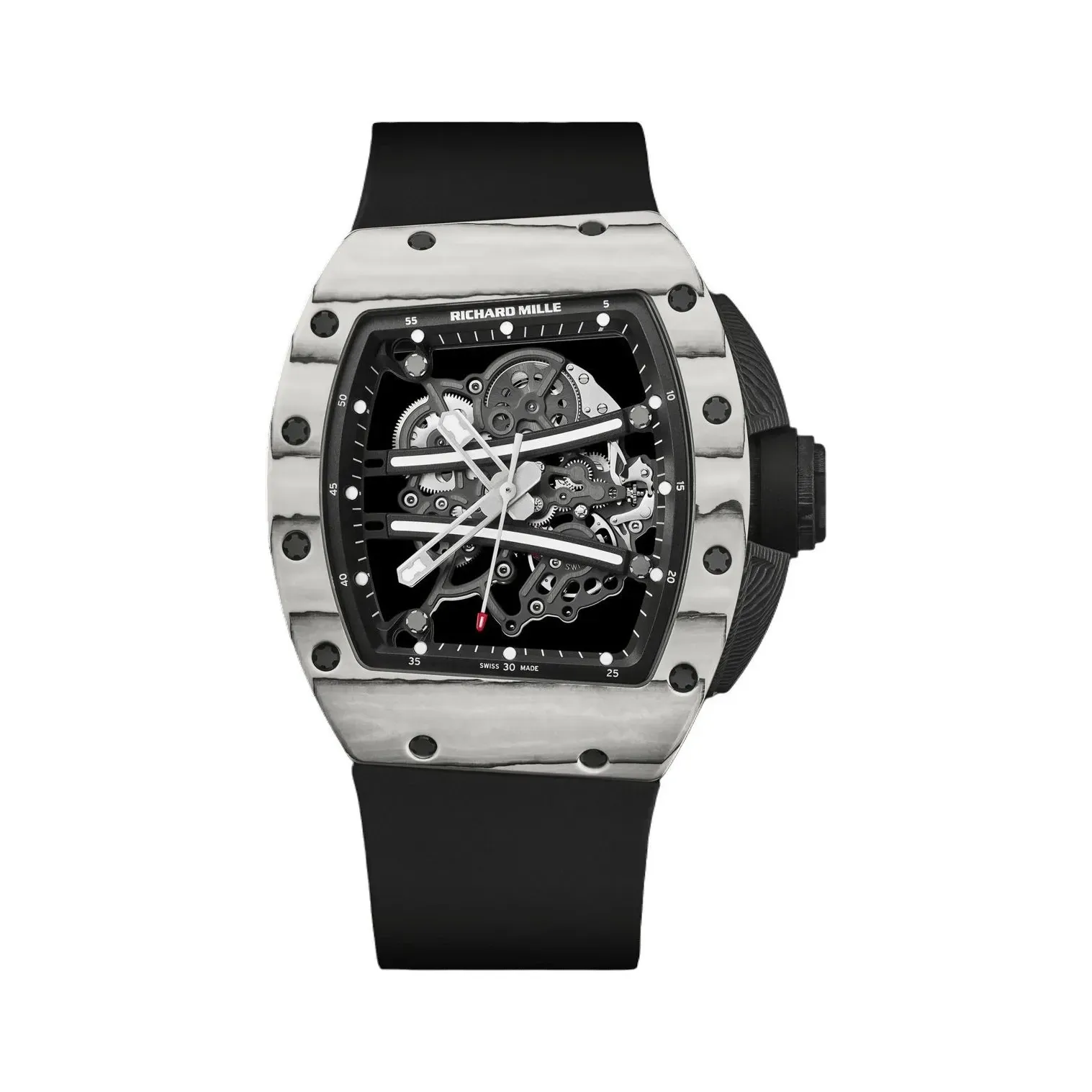

The RM 61-01 Ultimate Edition is the final issue of the model. TZP ceramic gives way to Quartz TPT® and Carbon TPT® for the bezel and caseback, with Carbon TPT® also used for the caseband and for the crown protector. The white and black banding of the interleaved composites runs across the case, on a black rubber strap.
The two materials are combined in a single stack: layers of silica-based Quartz TPT® no more than 45 microns thick are interlaced with layers of Carbon TPT®, positioned by an automatic compiling system that rotates the fibre orientation by 45° between plies. The 600-layer stack is cured in an autoclave at 120°C under 6 bar and then machined in-house, so milling and turning expose a pattern that differs on every component.
Key details
Design and engineering
- Interleaved compositeSilica-based Quartz TPT® layers no thicker than 45 microns are stacked alternately with Carbon TPT® layers, each ply rotated 45° from the last, then heated to 120°C at 6 bar in an autoclave before machining at Richard Mille’s own factory.
- CalibreA highly skeletonised movement in PVD-treated grade 5 titanium with a 55-hour power reserve, tested for impacts in excess of 5,000 g.
- Traversing balance bridgesThe balance bridges are grade 5 titanium, black-galvanised and hand-painted.
- Variable-inertia balanceOscillating at 4 Hz, adjusted by weights on the balance rather than by an index.
- Crown protector in Carbon TPT®Protects the crown during activity; the case elongation between 2 and 5 o’clock removes contact with the wrist.
- The last of the modelRichard Mille describes the Ultimate Edition as the final issue of the RM 61-01, but gives neither a year nor an edition size for it.
Specifications
Technical specifications
| Reference | RM 61-01 |
|---|---|
| Calibre | RMUL2, manual winding, skeletonised |
| Functions | Hours, minutes, seconds |
| Power reserve | 55 hours |
| Frequency | 28,800 vph (4 Hz) |
| Jewels | 24 |
| Baseplate and bridges | Grade 5 titanium, PVD treated |
| Balance bridges | Grade 5 titanium, black-galvanised, hand-painted |
| Balance | Variable inertia |
| Shock resistance | Tested in excess of 5,000 g |
| Case dimensions | 42.70 × 50.23 mm |
| Bezel and caseback | Quartz TPT® and Carbon TPT® |
| Caseband | Carbon TPT® |
| Crown protector | Carbon TPT® |
| Composite construction | 600 layers, 45 micron plies, 45° rotation, 120°C at 6 bar |
| Crystal | Sapphire, anti-glare both sides |
| Water resistance | 50 m |
| Strap | Black rubber |
