- Case
- Tripartite tonneau
- Movement
- Manual winding, skeletonised
- Size
- 49.94 × 42.00 × 14.05 mm
Overview
Black Carbon TPT® throughout, 50.3 grams complete

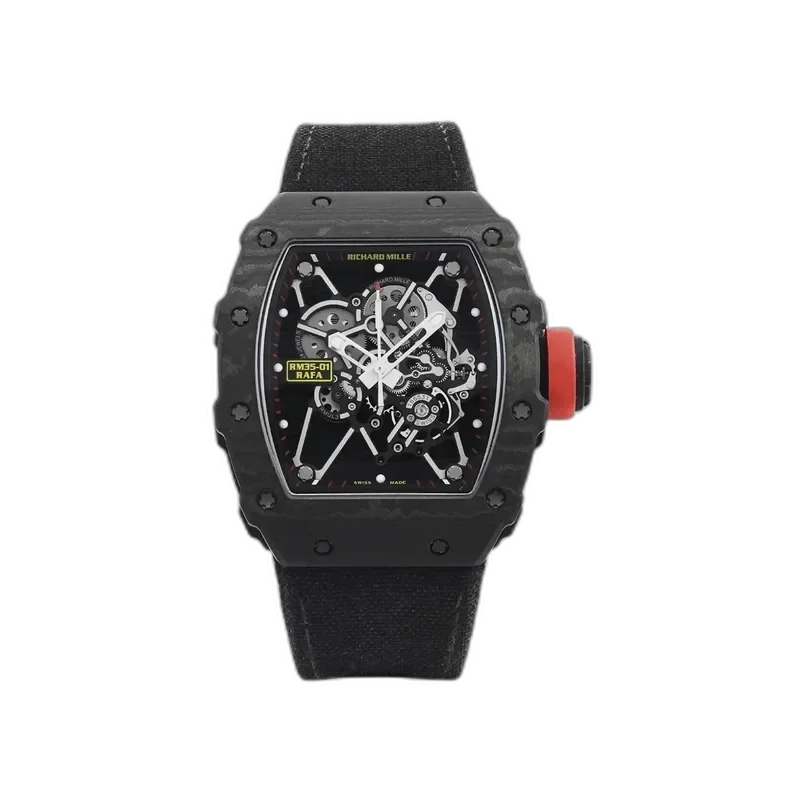

This RM 35-01 carries Carbon TPT® through all three case parts — front bezel, caseband and back bezel — and through the crown, which is sealed by a red Alcryn O-ring. Richard Mille gives the total weight of the watch as 50.3 grams.
The flange holds the yellow RM35-01 RAFA plaque and the crown is red. The strap is black fabric, lined with a rubber composite and fastened by Velcro at the 6 o’clock side.
Key details
Case materialCarbon TPT®
Total weight50.3 g
Power reserveCirca 55 hours (± 10%)
Design and engineering
- Carbon TPT® tripartite caseLayers of woven carbon filament averaging 30 microns, orientation shifted 45° between successive plies. The crown is executed in the same material, with a red Alcryn O-ring seal.
- Calibre RMUL3Grade 5 titanium construction with black PVD, weighing four grams, validated under shocks exceeding 5,000 g.
- Double-barrel systemTwo barrels supply the 55-hour reserve and even out torque delivery across it.
- Free-sprung balance with variable inertiaThe regulator index is eliminated; regulation is by four small weights set directly on the balance.
- Case assembly20 grade 5 titanium spline screws with abrasion-resistant 316L stainless steel washers, sealed by two Nitrile O-rings and water resistant to 50 metres.
- Fabric strapNylon lined with a rubber composite, fastened by Velcro on the 6 o’clock side.
Specifications
Technical specifications
| Reference | RM 35-01 |
|---|---|
| Calibre | RMUL3 |
| Movement | Manual winding, skeletonised |
| Functions | Hours, minutes, seconds |
| Power reserve | Circa 55 hours (± 10%) |
| Movement dimensions | 30.25 × 28.45 mm, thickness 3.15 mm |
| Movement weight | 4 g |
| Jewels | 24 |
| Barrel arbour | AP 20 steel |
| Balance | Glucydur®, 2 arms, 4 setting screws, moment of inertia 4.8 mg·cm², angle of lift 53° |
| Frequency | 28,800 vph (4 Hz) |
| Balance spring | Elinvar |
| Barrels | Double barrel |
| Baseplate | Grade 5 titanium, wet sandblasted, PVD treated, hand drawn after treatment |
| Bridges | Grade 5 titanium, hand ground, wet sandblasted, Titalyt® treated |
| Case | Tripartite tonneau |
| Case dimensions | 49.94 × 42.00 × 14.05 mm |
| Case material | Carbon TPT® |
| Total weight | 50.3 g |
| Case assembly | 20 grade 5 titanium spline screws, 316L stainless steel washers, 2 Nitrile O-ring seals |
| Water resistance | 50 m |
| Strap | Black fabric with Velcro fastening |
| Introduced | 2014 |
