- Year
- 2017
- Condition
- Very good
- Set
- Box and papers
- Case
- Tripartite tonneau
- Movement
- Manual winding, skeletonised
- Size
- 49.94 × 42.00 × 14.05 mm
Set and condition
Complete set
This RM 35-01 is accompanied by its original presentation box, warranty card and supporting documentation. The watch and included items are inspected by an expert watchmaker before sale. Additional photographs and video of this piece are available on request.
Original presentation box
Original presentation box and packaging.
Original papers
Warranty card and supporting documentation.
Inspected prior to sale
Reviewed for condition, completeness and functionality. Additional details and photographs are available on request.
Condition photography
Additional close-up images of specific areas are available before purchase.

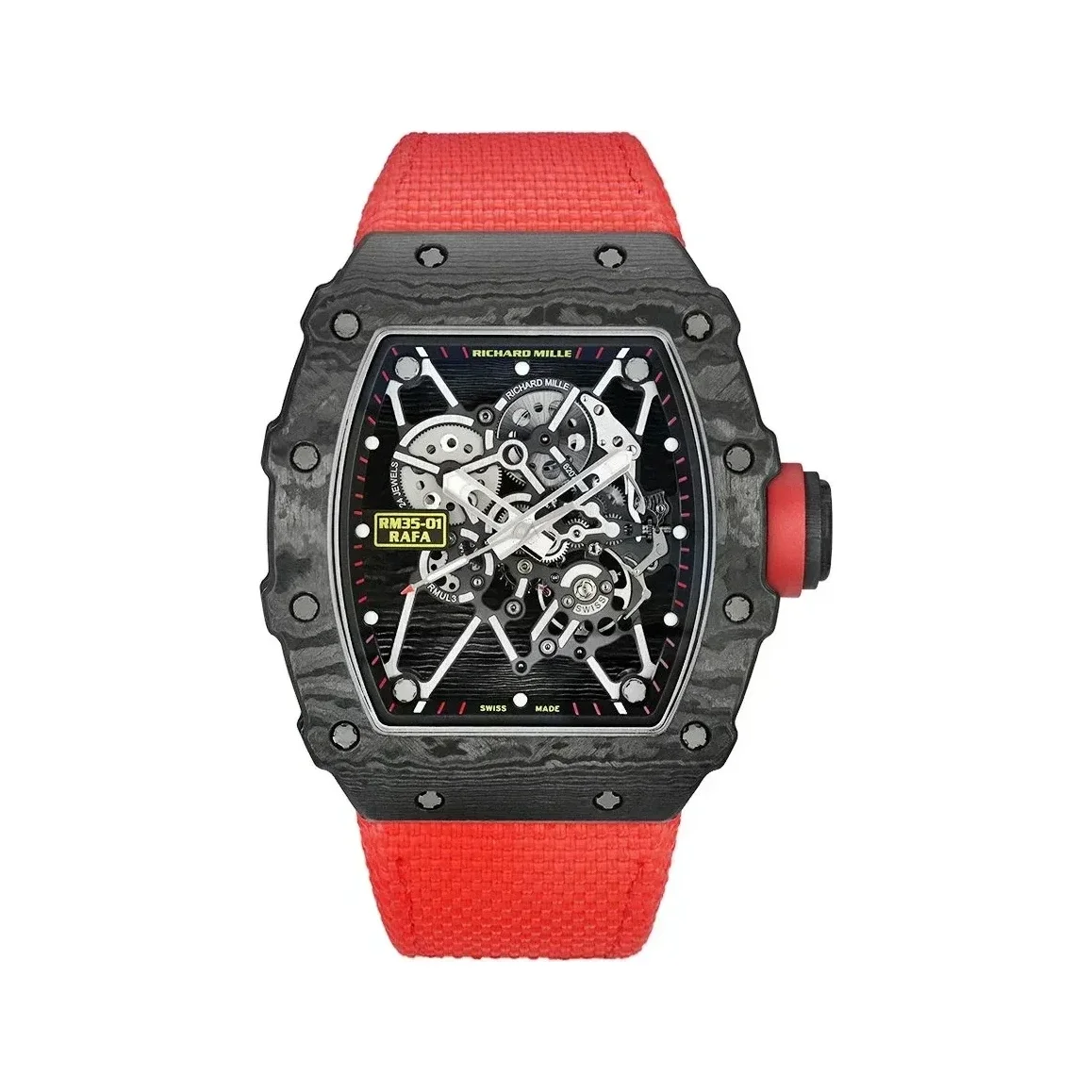

Overview
Carbon TPT® case, four-gram manual calibre RMUL3
Introduced in 2014, the RM 35-01 replaced the RM 035’s alumagnesium case with Carbon TPT® and its calibre RMUL1 with the RMUL3. The movement is manual winding and skeletonised, showing hours, minutes and seconds, and weighs four grams in total. Richard Mille tested it under shocks exceeding 5,000 g.
The Carbon TPT® case carries the layer striations characteristic of the material, unique to each piece. The crown is red, the flange holds the yellow RM35-01 RAFA plaque, and the watch is fitted to a red fabric strap.
Key details
Design and engineering
- Carbon TPT® caseMultiple layers of woven carbon filaments averaging 30 microns in thickness, stacked with a 45° change of fibre orientation between every two successive layers, then cured and machined. Richard Mille states that the material reduces the rate of occurrence of breaking stresses by 25% and of micro-cracks by 200% relative to conventional composites.
- Calibre RMUL3Grade 5 titanium throughout the skeletonised movement with black PVD surface treatment, giving impact resistance in a four-gram assembly. The baseplate is wet sandblasted, PVD treated and hand drawn after treatment; the bridges are hand ground, wet sandblasted and Titalyt® treated.
- Double-barrel systemTwo barrels supply the 55-hour reserve and even out torque delivery across it.
- Free-sprung balance with variable inertiaGlucydur®, two arms and four setting screws, running at 4 Hz without a regulator index.
- Shock testingRichard Mille’s engineers at Les Breuleux applied shocks exceeding 5,000 g to the calibre.
- Interior flangeUpper flange in black carbon fibre with the hour index points filled with luminous material.
The reference
Technical specifications
| Reference | RM 35-01 |
|---|---|
| Calibre | RMUL3 |
| Movement | Manual winding, skeletonised |
| Functions | Hours, minutes, seconds |
| Power reserve | Circa 55 hours (± 10%) |
| Movement dimensions | 30.25 × 28.45 mm, thickness 3.15 mm |
| Movement weight | 4 g |
| Jewels | 24 |
| Barrel arbour | AP 20 steel |
| Balance | Glucydur®, 2 arms, 4 setting screws, moment of inertia 4.8 mg·cm², angle of lift 53° |
| Frequency | 28,800 vph (4 Hz) |
| Balance spring | Elinvar |
| Barrels | Double barrel |
| Baseplate | Grade 5 titanium, wet sandblasted, PVD treated, hand drawn after treatment |
| Bridges | Grade 5 titanium, hand ground, wet sandblasted, Titalyt® treated |
| Case | Tripartite tonneau |
| Case dimensions | 49.94 × 42.00 × 14.05 mm |
| Case material | Carbon TPT® |
| Case assembly | 20 grade 5 titanium spline screws, 316L stainless steel washers, 2 Nitrile O-ring seals |
| Interior flange | Black carbon fibre, luminous index points |
| Crystal | Sapphire (1,800 Vickers), anti-glare both sides, 1.50 mm |
| Water resistance | 50 m |
| Strap | Red fabric |
| Introduced | 2014 |
