- Case
- Tripartite, round
- Movement
- Automatic winding, skeletonised
- Size
- 41.70 × 8.80 mm
- Edition
- 140 pieces
Overview
Carbon TPT® and 5N red gold, calibre RMXP1

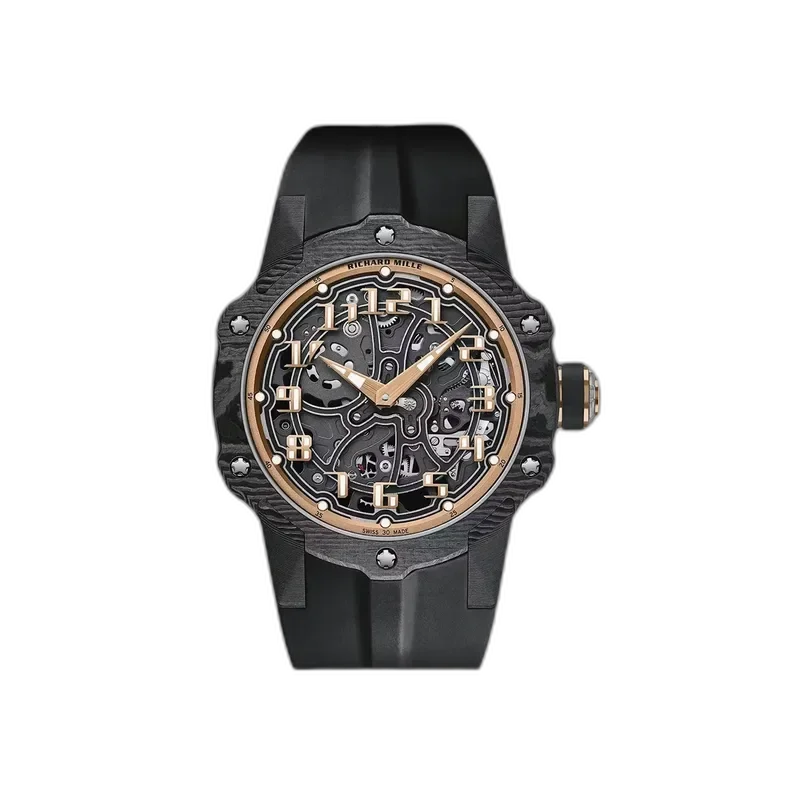

The RM 33-02 pairs Carbon TPT® front and back bezels with a satin-finished 18K 5N red gold caseband in a 41.70 × 8.80 mm tripartite case, and was produced in a limited edition of 140 pieces.
The 5N gold hour markers are carried on two rigid titanium rails fixed between the flange and the movement, standing clear of the skeletonised calibre, and the lugs are absorbed into the case’s torque screw system.
Key details
Case materialsCarbon TPT® and 18K 5N red gold
MovementCalibre RMXP1, skeletonised automatic winding
Water resistance30 m
Design and engineering
- Carbon TPT®Layered carbon composite machined from cured blocks; the layer orientation changes between plies, giving each bezel a distinct figure.
- 5N red gold casebandSatin-finished, set between the two composite bezels.
- Suspended hour markers5N gold markers on two rigid titanium rails fixed between the flange and the movement, standing clear of the skeletonised calibre.
- Off-centre monobloc platinum micro-rotorBi-directional, solid platinum, keeping the calibre to 2.60 mm.
- Integrated lugsThe lugs are absorbed into the case’s torque screw system, with indentations at 6 and 12 o’clock continuing into the strap.
Specifications
Technical specifications
| Reference | RM 33-02 |
|---|---|
| Calibre | RMXP1 |
| Movement | Automatic winding, skeletonised |
| Functions | Hours, minutes; off-centre monobloc platinum rotor |
| Power reserve | 42 hours |
| Jewels | 29 |
| Balance | Free-sprung, variable inertia, 4 adjustable weights |
| Frequency | 21,600 vph (3 Hz) |
| Movement dimensions | Thickness 2.60 mm |
| Baseplate | Grade 5 titanium, wet sandblasted, Titalyt® treated |
| Bridges | Grade 5 titanium, black PVD coated |
| Rotor | Off-centre monobloc solid platinum, bi-directional |
| Hour markers | 5N gold on two titanium rails between the flange and the movement |
| Case | Tripartite, round |
| Case dimensions | 41.70 × 8.80 mm |
| Front and back bezels | Carbon TPT® |
| Caseband | Satin-finished 18K 5N red gold |
| Case assembly | 14 grade 5 titanium spline screws, 316L stainless steel washers, 2 Nitrile O-ring seals |
| Water resistance | 30 m |
| Strap | Black rubber |
| Introduced | 2020 |
| Edition | 140 pieces |
