- Year
- 2024
- Condition
- Unworn
- Accessories
- Box and papers
- Case
- Tripartite tonneau
- Movement
- Automatic winding, skeletonised
- Size
- 42.00 × 49.94 mm; thickness not established
Overview

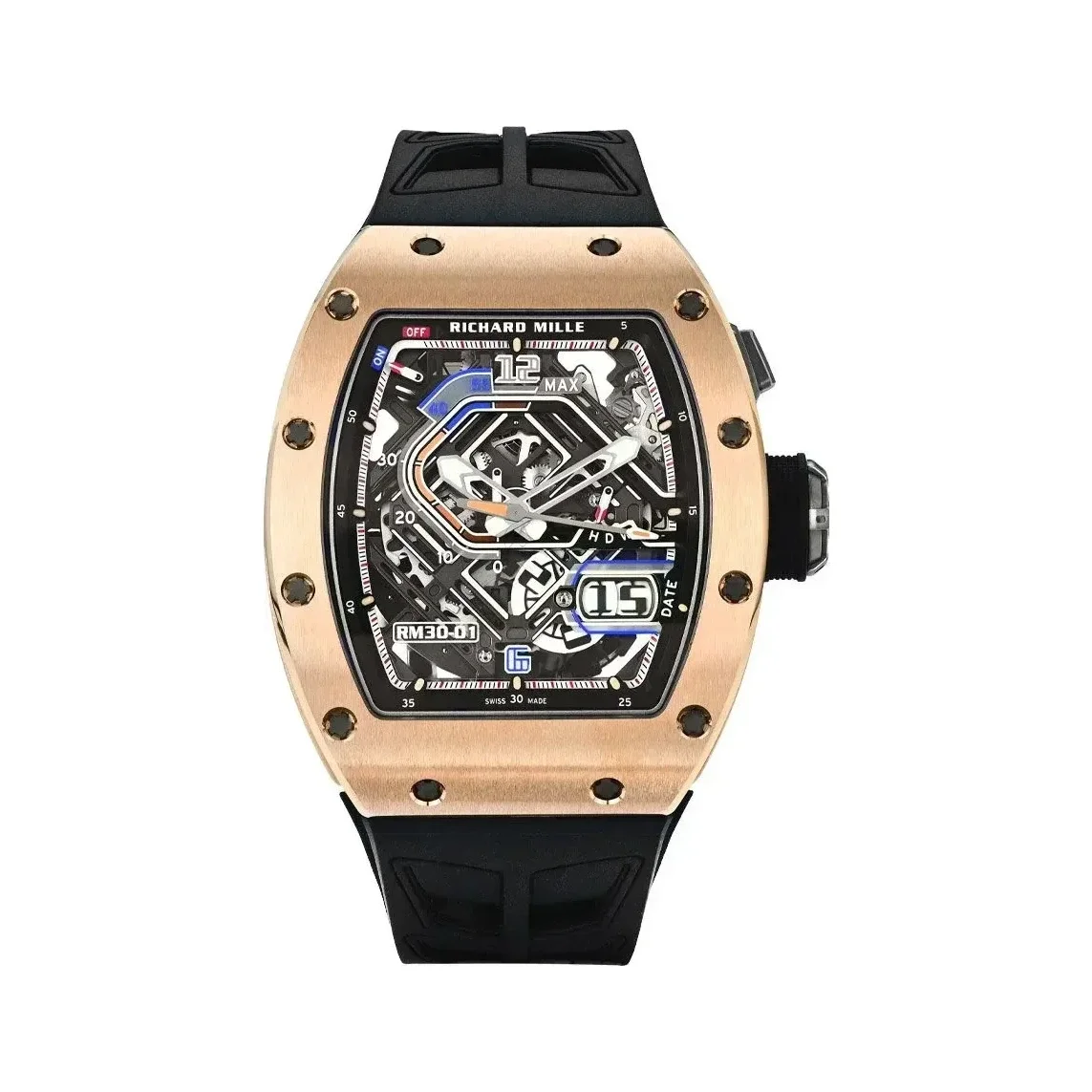

Red gold execution of the RMAR2 declutchable-rotor calibre
The RM 30-01 replaced both the RM 029 and the RM 030 in the Richard Mille collection in 2023, and was launched in grade 5 titanium and 18K 5N red gold. It carries the calibre RMAR2, which adds an integrated function selector and a revised declutching mechanism to the architecture established by the RMAR1.
The skeletonised display is laid out on a diamond-based geometry, with the clutch engagement indicator at the upper left, the function-selector hand at 3 o’clock, the oversize date in a horizontal aperture at 4 o’clock and the power-reserve scale sweeping the upper half of the dial.
Key details
Case material18K 5N red gold
MovementCalibre RMAR2, skeletonised automatic winding
Power reserveAround 55 hours (± 10%)
Design and engineering
- Declutchable variable-geometry rotorWhen the power reserve reaches 55 hours the rotor is declutched by a purpose-built gear train and disengaged from the barrel; when the reserve falls to 40 hours it re-clutches and a further winding phase begins.
- Clutch engagement indicatorPositioned at the upper left of the dial, it reports whether the rotor is winding (on) or disengaged (off).
- Function selectorA pusher at 2 o’clock selects winding, date setting or hand setting, in the manner of a gearbox; a hand at 3 o’clock displays the mode selected.
- Oversize dateSemi-instantaneous, in a horizontal aperture at 4 o’clock.
- Double-barrel systemEnergy is distributed across two barrels rather than one, increasing the number of rotations and reducing pressure on teeth, bearings and pivots.
- Case constructionTripartite, water resistant to 50 metres by two Nitrile O-ring seals, assembled with 20 grade 5 titanium spline screws and abrasion-resistant 316L stainless steel washers. No casing ring is used; the movement sits on chassis mounting rubbers (ISO SW) fixed by grade 5 titanium screws.
Specifications
Technical specifications
| Reference | RM 30-01 |
|---|---|
| Calibre | RMAR2 |
| Movement | Automatic winding, skeletonised |
| Functions | Hours, minutes, seconds, oversize date, clutch engagement and power-reserve indicators, function selector, declutchable variable-geometry rotor |
| Power reserve | Around 55 hours (± 10%) |
| Declutch thresholds | Disengages at 55 hours, re-engages at 40 hours |
| Movement dimensions | 31.25 × 29.45 mm, thickness 5.41 mm |
| Jewels | 38 |
| Barrel arbour | AP 20 steel |
| Balance | Glucydur®, 4 arms, 4 setting weights, moment of inertia 4.8 mg·cm², angle of lift 53° |
| Frequency | 28,800 vph (4 Hz) |
| Balance spring | Elinvar by Nivarox® |
| Shock protection | Incabloc 908.22.211.100 (transparent) |
| Escapement wheel jewels | Rubifix (transparent) |
| Baseplate and bridges | Grade 5 titanium, hand-ground, wet sandblasted, Titalyt® treated; barrel bridges PVD coated |
| Rotor | Grade 5 titanium central flange, heavy metal weight segment, 18K white gold wings with 5 positions, ceramic ball bearings, unidirectional anticlockwise |
| Case | Tripartite tonneau |
| Case dimensions | 42.00 × 49.94 mm; thickness not established |
| Case material | 18K 5N red gold |
| Case assembly | 20 grade 5 titanium spline screws, 316L stainless steel washers, 2 Nitrile O-ring seals |
| Water resistance | 50 m |
| Strap | Black rubber |
| Introduced | 2023 |
