- Year
- 2026
- Condition
- Unworn
- Set
- Box and papers
- Movement
- Skeletonised automatic winding
- Size
- 36.00 × 45.64 × 9.50 mm
Set and condition
Complete set
This RM 16-02 Terracotta Quartz TPT® is accompanied by its original presentation box, warranty card and supporting documentation. The watch and included items are inspected by an expert watchmaker before sale. Additional photographs and video of this piece are available on request.
Original presentation box
Original presentation box and packaging.
Original papers
Warranty card and supporting documentation.
Inspected prior to sale
Reviewed for condition, completeness and functionality. Additional details and photographs are available on request.
Condition photography
Additional close-up images of specific areas are available before purchase.
Overview
Terracotta Quartz TPT® case with the CRMA9 extra-flat calibre

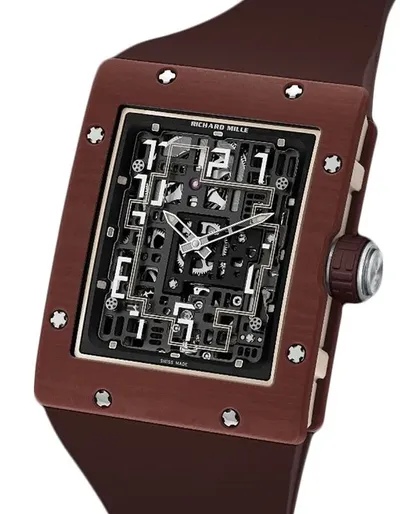

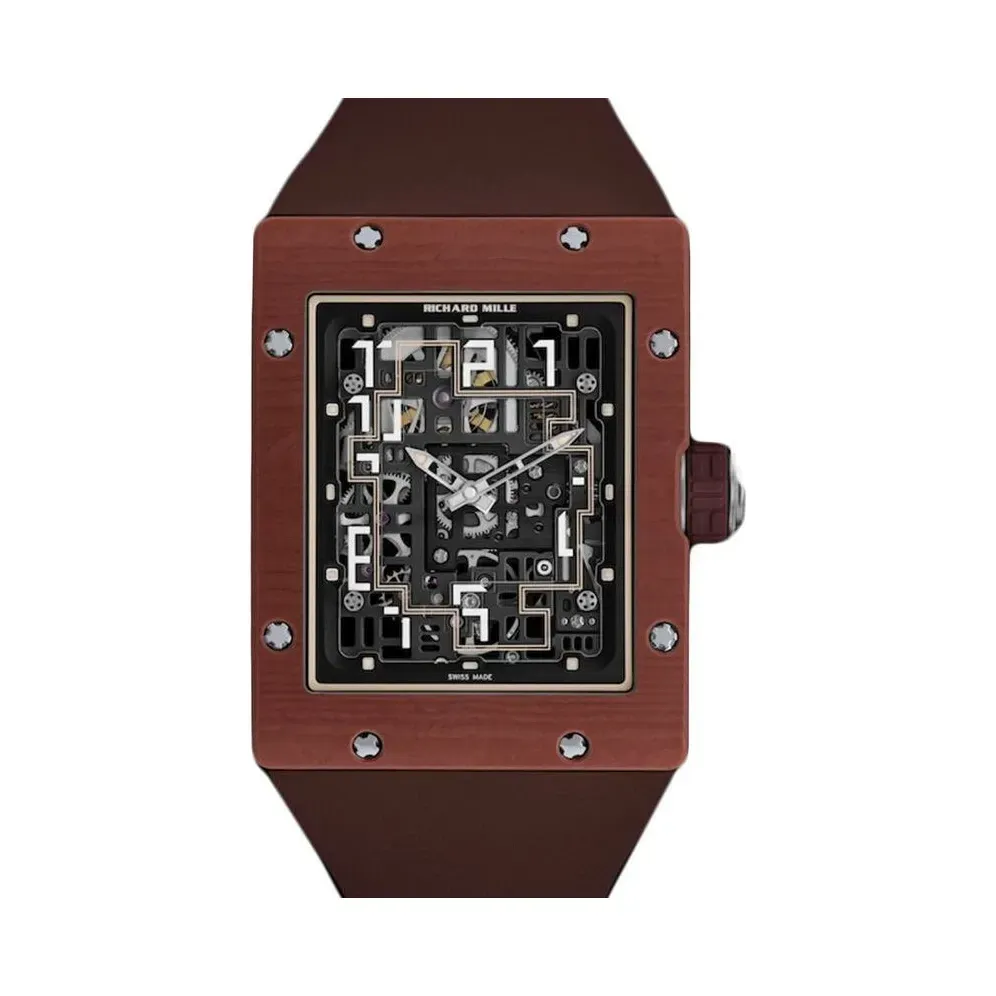

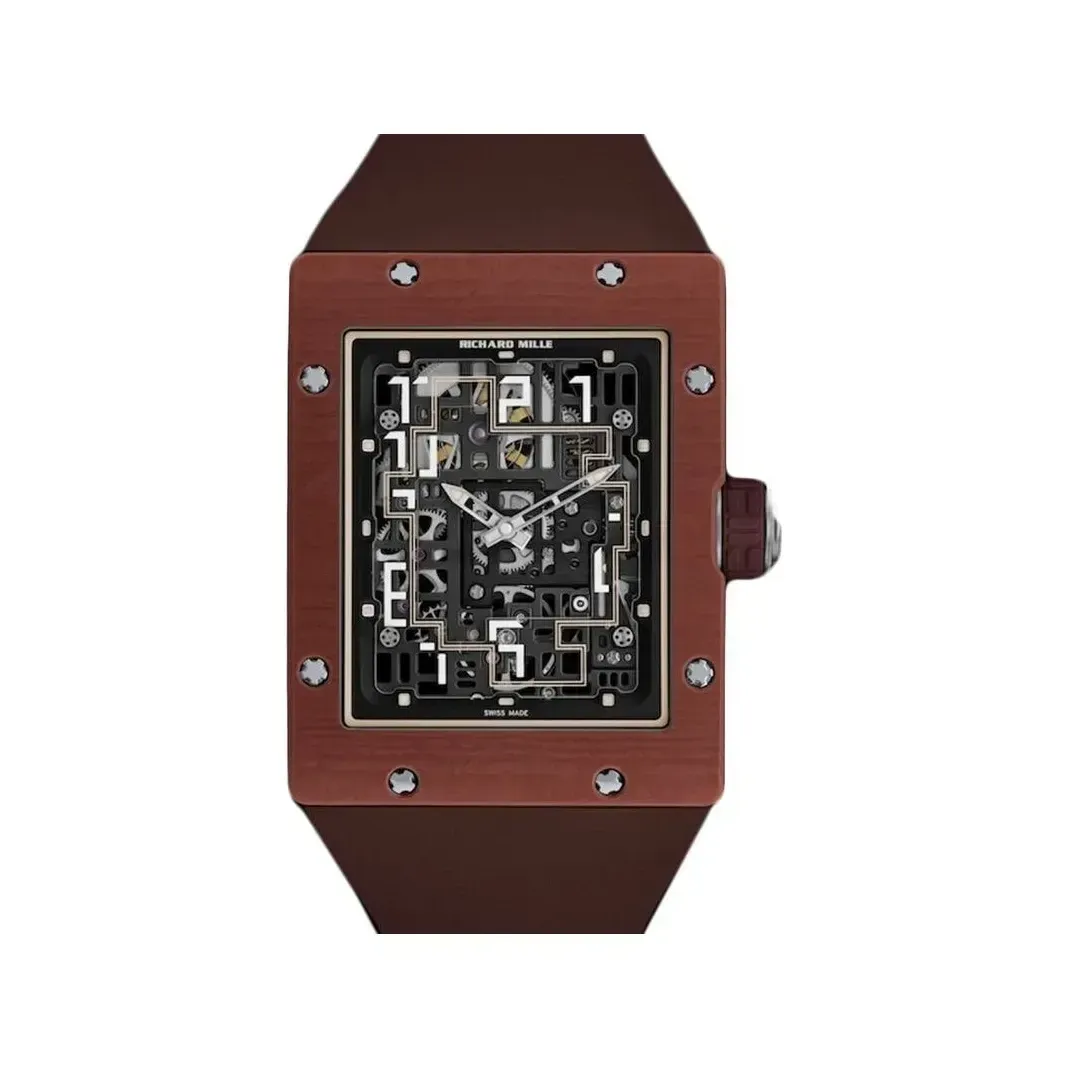

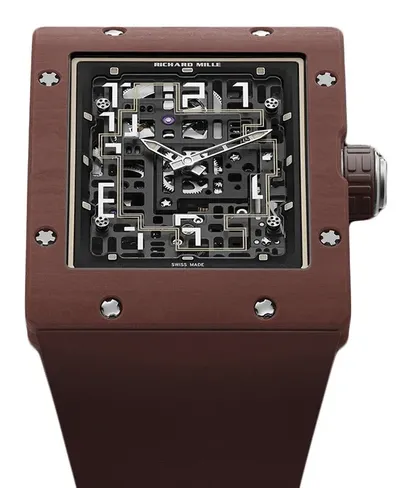

The RM 16-02 Automatic Extraflat is a new interpretation of the rectangular shape, with its own distinct identity in the Richard Mille collection: straight lines, a monolithic structure and the brand’s wrist-fitting curvature and taper. This version is cased in terracotta Quartz TPT®.
Quartz TPT® is formed from silica fibres aligned in layers no thicker than 45 microns and saturated in resins developed specially for Richard Mille; the layers are stacked with the orientation of the fibre changing by 45° between each one.
Key details
Design and engineering

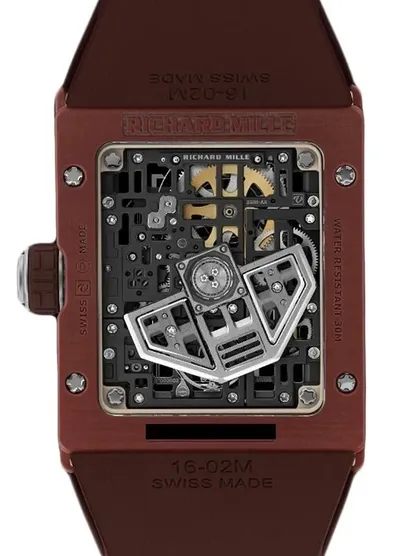

- Calibre CRMA9A movement developed specifically for the RM 16-02, 4.12 mm thick. The skeletonised baseplate is microblasted grade 5 titanium with grey electroplasma treatment and occupies the entire visible surface of the watch; the motion-work bridge is finished in black PVD. The structure carries multiple meticulously chamfered apertures.
- Free-sprung balance with variable inertiaThe regulator index is eliminated in favour of four adjustable weights mounted on the balance itself, which allows repeatable calibration and removes a wear point.
- Platinum rotorWinding uses a platinum rotor with the OneWay® system running on ceramic ball bearings, which allows sufficient winding torque within the movement’s reduced thickness.
- Tripartite caseBezel, caseband and caseback are machined separately and assembled with 12 grade 5 titanium spline screws and abrasion-resistant 316L stainless steel washers. Water resistance of 30 metres is provided by three nitrile O-ring seals. No casing ring is used; the movement is mounted on chassis mounting rubbers (ISO SW) fixed by titanium screws.
- DialThe indices follow a wire decal that runs through the skeletonised movement.
The reference
Technical specifications
| Reference | RM 16-02 |
|---|---|
| Calibre | CRMA9 |
| Movement | Skeletonised automatic winding |
| Functions | Hours, minutes |
| Power reserve | Around 50 hours (± 10%) |
| Frequency | 28,800 vph (4 Hz) |
| Jewels | 25 |
| Balance | CuBe, 4 arms, 4 setting screws, moment of inertia 7.5 mg·cm², angle of lift 50° |
| Balance spring | AK3 |
| Shock protection | Incabloc 908.22.211.100 (transparent) |
| Barrel | Fast-rotating, 1 revolution per 5 hours instead of 7.5 |
| Going train | 20° pressure angle, involute profile |
| Movement dimensions | 26.00 × 31.25 mm, thickness 4.12 mm |
| Baseplate and bridges | Grade 5 titanium, microblasted, grey electroplasma; motion-work bridge black PVD |
| Rotor | Platinum, OneWay® winding, ceramic ball bearings |
| Case dimensions | 36.00 × 45.64 × 9.50 mm |
| Case shape | Rectangular |
| Case material | Terracotta Quartz TPT® |
| Case construction | Tripartite, 12 grade 5 titanium spline screws, 316L stainless steel washers, 3 nitrile O-ring seals |
| Dial | Indices on a wire decal |
| Water resistance | 30 m |
