- Case
- Carbon TPT®, mid diamond setting
- Movement
- Automatic, calibre CRMA2, skeletonised
Overview
Carbon TPT® with mid diamond setting

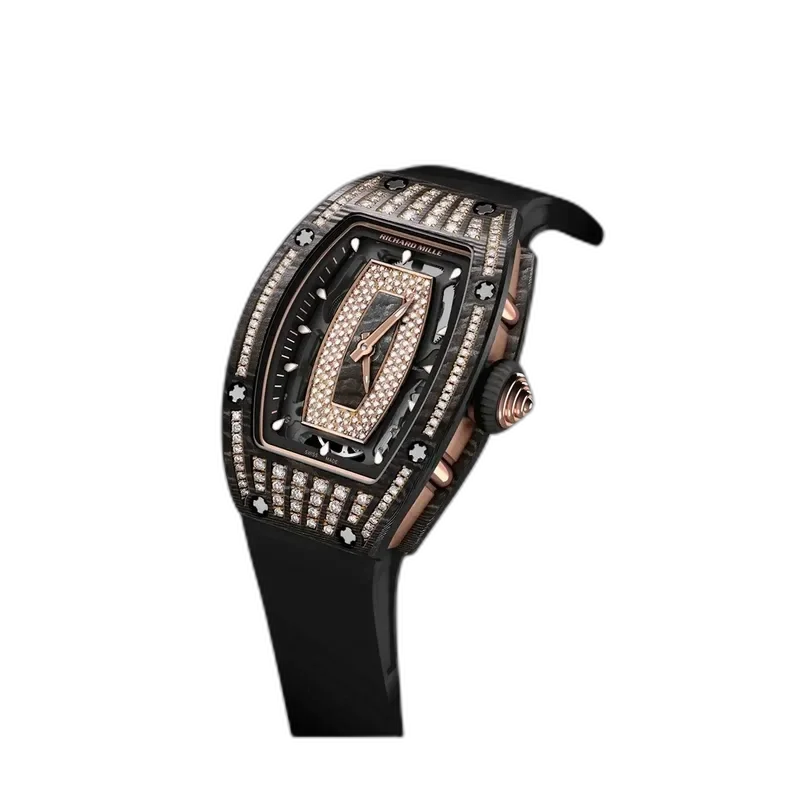

An RM 07-01 in Carbon TPT® with partial diamond coverage on the case, leaving areas of the composite exposed. Case material, movement and dimensions are identical to the full setting execution; the two differ in the extent of the setting. The dial is pavé-set and framed in red gold.
Key details
Case materialCarbon TPT®
SettingMid — partial coverage
DialPavé-set with red gold framing
Design and engineering
- Mid diamond settingPartial coverage, leaving areas of the Carbon TPT® case exposed.
- Carbon TPT® caseLayered carbon filaments under 30 microns thick, resin-impregnated, laid at rotating angles, cured and machined to reveal the layer structure.
- Pavé dial with red gold framingSet and framed in red gold.
- Calibre CRMA2Skeletonised automatic, hours and minutes, with adjustable rotor geometry.
- Variable-geometry rotorBidirectional, with a heavy 5N red gold edge ring and OneWay® ceramic ball bearings; two spline-screwed weights set the winding rate.
- Spline screws in grade 5 titaniumUsed for bridges and case.
Specifications
Technical specifications
| Reference | RM 07-01 Carbon TPT® Mid Setting |
|---|---|
| Dimensions | 45.66 × 31.40 × 11.85 mm |
| Case | Carbon TPT®, mid diamond setting |
| Crystal | Sapphire, front and display back |
| Water resistance | 50 m |
| Movement | Automatic, calibre CRMA2, skeletonised |
| Baseplate and bridges | Microblasted grade 5 titanium, electroplasma treated |
| Movement dimensions | 29.90 × 22.00 × 4.92 mm |
| Jewels | 25 |
| Balance | CuBe, free-sprung, 4 adjustable weights, variable inertia |
| Winding | Bidirectional variable-geometry rotor, 5N red gold edge ring, OneWay® ceramic ball bearings |
| Functions | Hours, minutes · Adjustable rotor geometry |
| Frequency | 28,800 vph (4 Hz) |
| Power reserve | circa 50 hours (± 10%) |
| Strap | Rubber |
