- Case
- Carbon TPT®, full diamond setting
- Movement
- Automatic, calibre CRMA2, skeletonised
Overview
Carbon TPT® with full diamond setting

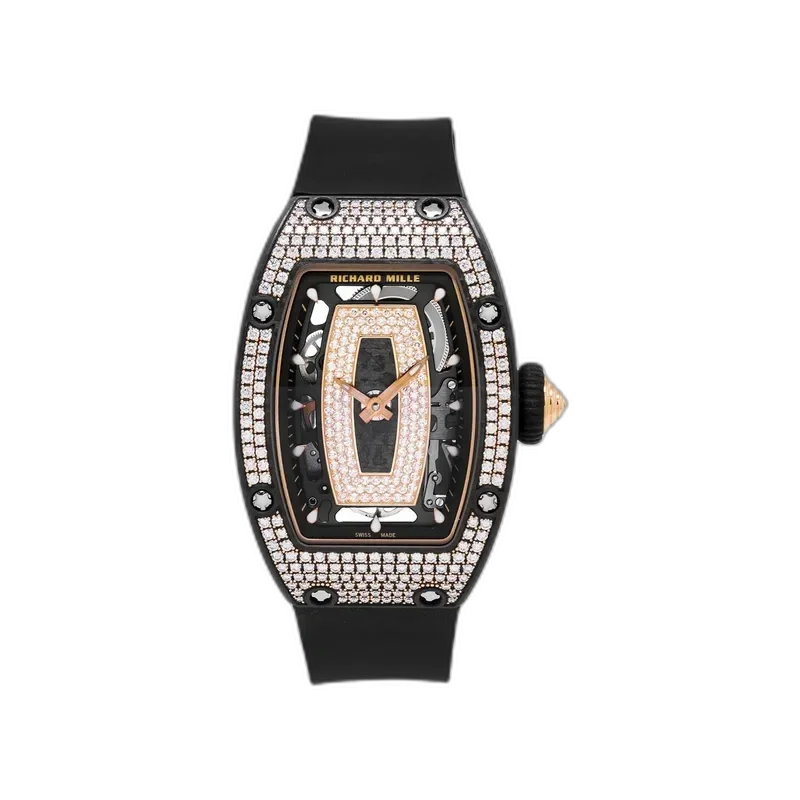

An RM 07-01 in Carbon TPT® with diamonds set across the bezel and case flanks, and a pavé-set dial. Carbon TPT® is built from layered carbon filaments cured under heat and pressure and machined to reveal the layer structure.
Key details
Case materialCarbon TPT®
SettingFull — bezel and case flanks
DialPavé-set
Design and engineering
- Carbon TPT® caseLayers of parallel carbon filaments under 30 microns thick, resin-impregnated and laid at rotating angles, cured under heat and pressure, then machined so the layer structure appears as a striated pattern.
- Full diamond settingStones across the bezel and case flanks, individually seated to follow the tonneau’s compound curve.
- Pavé dialSet to match the case.
- Calibre CRMA2Skeletonised automatic with hours, minutes and adjustable rotor geometry, on microblasted grade 5 titanium with electroplasma treatment.
- Free-sprung balance with variable inertiaFour adjustable weights on the balance replace the regulator index.
- Gear teeth profile20° pressure angle, developed for Richard Mille’s in-house calibres.
Specifications
Technical specifications
| Reference | RM 07-01 Carbon TPT® Full Setting |
|---|---|
| Dimensions | 45.66 × 31.40 × 11.85 mm |
| Case | Carbon TPT®, full diamond setting |
| Crystal | Sapphire, front and display back |
| Water resistance | 50 m |
| Movement | Automatic, calibre CRMA2, skeletonised |
| Baseplate and bridges | Microblasted grade 5 titanium, electroplasma treated |
| Movement dimensions | 29.90 × 22.00 × 4.92 mm |
| Jewels | 25 |
| Balance | CuBe, free-sprung, 4 adjustable weights, variable inertia |
| Winding | Bidirectional variable-geometry rotor, 5N red gold edge ring, OneWay® ceramic ball bearings |
| Functions | Hours, minutes · Adjustable rotor geometry |
| Frequency | 28,800 vph (4 Hz) |
| Power reserve | circa 50 hours (± 10%) |
| Strap | Rubber |
