- Movement
- Skeletonised automatic winding, grade 5 titanium, hand finished
- Size
- 49.94 × 44.50 mm
- Edition
- 50 pieces, North and South America
Overview
Black TZP ceramic bezels with Carbon TPT® caseband

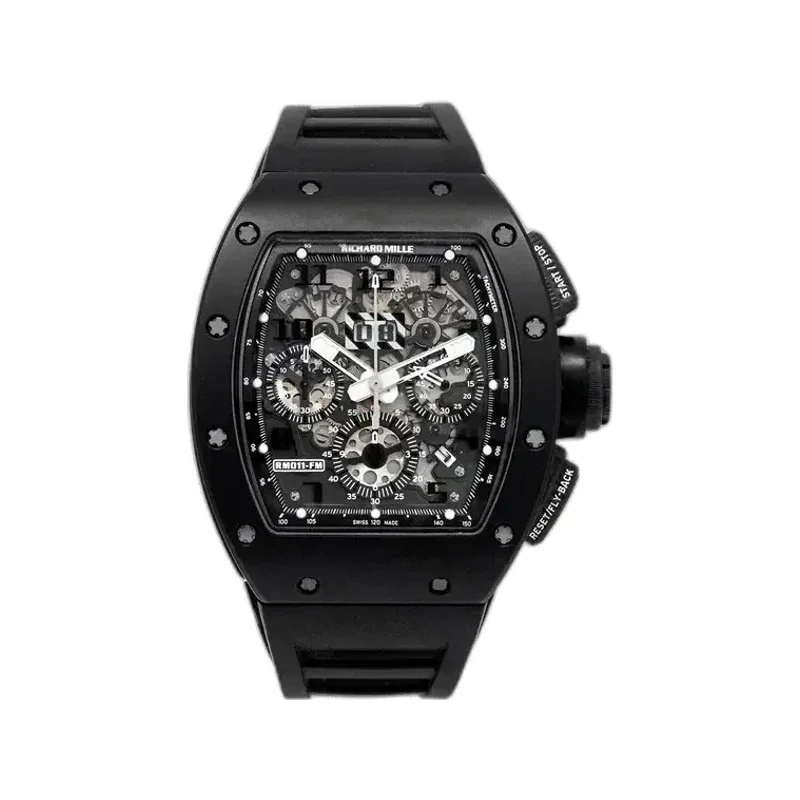

The Black Phantom combines two materials in the tripartite RM 011 case. The front and back bezels are black TZP ceramic, sandblasted to a matt finish; the centre caseband, together with the crown and the pushers, is Carbon TPT®. Richard Mille’s material designations distinguish ATZ, used for white ceramic, from TZP, used for black and coloured ceramic.
It was the first Richard Mille watch to combine these two materials. The hour indicators, counters, hands and flange are executed in black with white elements. The watch is fitted to a black rubber strap with a black DLC-treated titanium buckle.
Key details
Case materialsBlack TZP ceramic bezels; Carbon TPT® caseband, crown and pushers
Edition50 pieces, released 2014 for North and South America
Documented referenceRM011 AO CA TZP
Design and engineering
- Black TZP ceramic bezelsTZP — tetragonal zirconia polycrystal — is a zirconium-oxide ceramic. The front and back bezels are sandblasted to a matt finish. The material is resistant to scratching and to corrosion.
- Carbon TPT® caseband, crown and pushersThe centre section of the case is Carbon TPT®, composed of layers of parallel carbon filaments a maximum of 30 microns thick, impregnated with resin and laid with the weft rotated 45° between layers, then cured at 120 °C under 6 bar before machining. The crown and pushers are made from the same material.
- Dial furnitureHour indicators, counters, hands and flange combine black components with white ones.
- Calibre RMAC1Skeletonised automatic winding movement in grade 5 titanium, with flyback chronograph, 60-minute countdown timer, 12-hour totaliser, annual calendar and oversize date.
- Regional distributionThe 50-piece edition was released to Richard Mille boutiques and authorised retailers in North and South America.
Specifications
Technical specifications
| Reference | RM 011 |
|---|---|
| Documented reference | RM011 AO CA TZP |
| Calibre | RMAC1 |
| Movement | Skeletonised automatic winding, grade 5 titanium, hand finished |
| Functions | Hours, minutes, seconds, flyback chronograph, 60-minute countdown timer, 12-hour totaliser, oversize date, month, annual calendar |
| Dial layout | Oversize date at 12, month between 4 and 5, running seconds at 3, 12-hour counter at 6, 60-minute countdown at 9 |
| Jewels | 68 |
| Power reserve | Circa 50 hours (± 10%) |
| Winding | Bidirectional variable-geometry rotor |
| Case dimensions | 49.94 × 44.50 mm |
| Bezels | Black TZP ceramic, sandblasted matt |
| Caseband, crown, pushers | Carbon TPT® |
| Case assembly | 20 grade 5 titanium spline screws, 316L washers; movement on rubber O-ring seals with silent blocks |
| Crystal | Sapphire with anti-glare treatment, front and display back |
| Water resistance | 50 m |
| Strap | Black rubber |
| Buckle | Black DLC-treated titanium |
| Edition | 50 pieces, North and South America |
| Year | 2014 |
