- Movement
- Manual winding
- Size
- 40 mm
- Edition
- Limited series Ruthenium, numbered 1 to 99.
Overview
The constant-force tourbillon in ruthenium

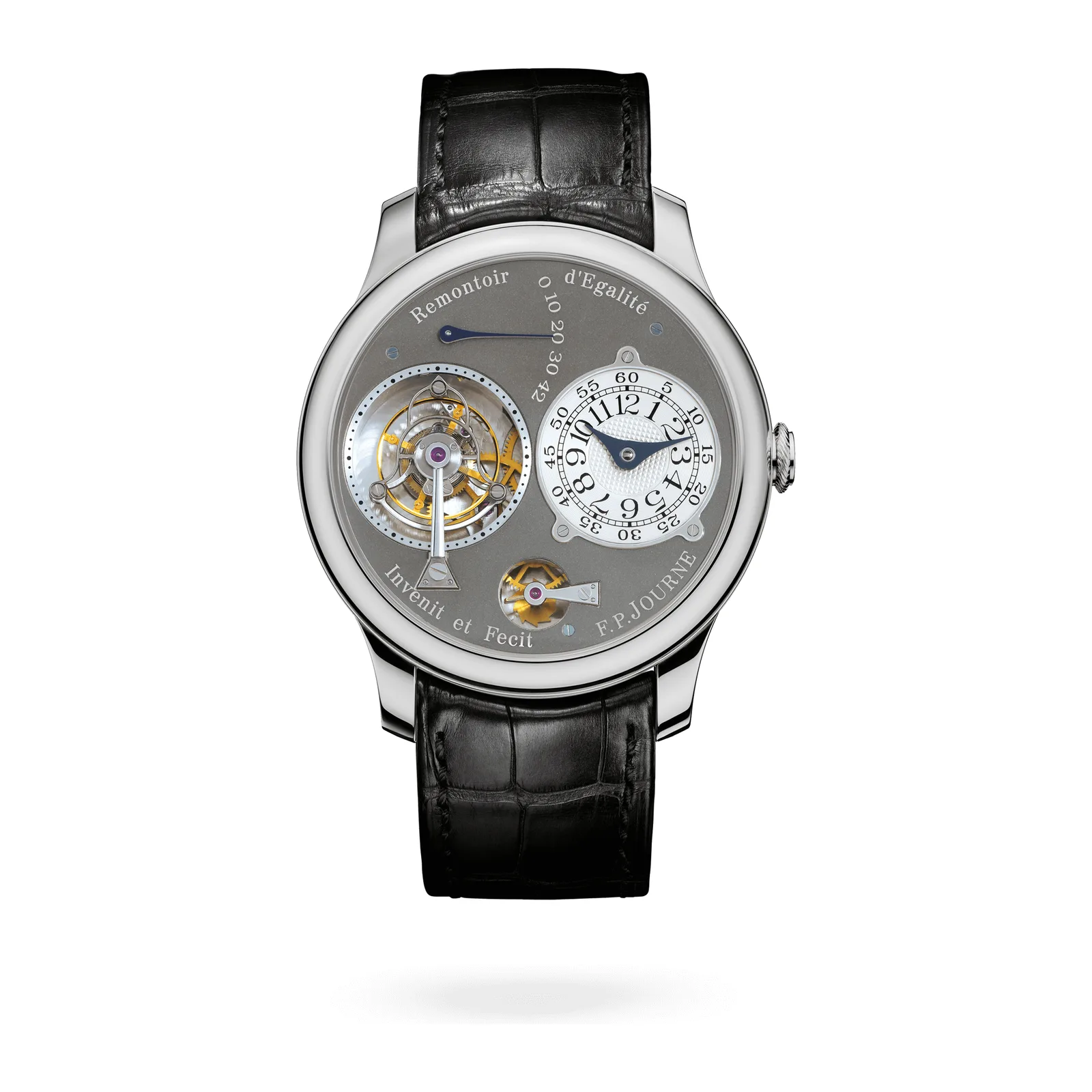

The F.P. Journe Tourbillon Souverain, reference T, from the limited Ruthenium series, in platinum on a leather strap with the ruthenium on gold and whitened guilloché silver dial. 40 mm and 9.9 mm high, manually wound on calibre 1498: a tourbillon with constant force, hours and minutes at 3 o'clock, power reserve at 10.
The Ruthenium Tourbillon Souverain was produced between 2001 and 2005 as a limited series numbered 1 to 99, in a 40 mm platinum case with a dial of ruthenium on gold and whitened guilloché silver. It runs on calibre 1498, a manually wound tourbillon with constant force.
The tourbillon turns the escapement and balance in a rotating cage to average out the rate errors that gravity causes in the vertical positions. The constant-force device deals with the other main source of error, the mainspring's falling torque: a secondary spring, rewound from the mainspring, drives the escapement with a near-steady force. Hours and minutes are read on a subdial at 3 o'clock and the power reserve at 10.
For collectors
F.P. Journe's amplitude figures show the constant-force device doing its work: 280° dial-up at full wind, and still 280° after 24 hours.
Key details
Design and engineering
- BalanceFree-sprung, with four inertia weights, a flat Anachron spring with Breguet overcoil pinned to its collet, and a pinned stud.
- EscapementA 15-tooth escape wheel with an anchor fork set at 90°.
- Winding and settingManual winding through a two-position crown; the second position sets the time.
- FinishingCircular stripes on the bridges, Geneva waves on the base plate, polished and bevelled screw heads, pegs with polished rounded ends.
Calibre 1498
- Manual winding, 20 turns of the crown
- Tourbillon with constant force
- 21,600 vibrations per hour (3 Hz), 28 jewels
- Power reserve 42 ± 2 hours
- 32.40 mm overall diameter, 6.60 mm high, 191 parts
The reference
Technical specifications
| Reference | T |
|---|---|
| Collection | Ruthenium |
| Calibre | Calibre 1498 |
| Movement | Manual winding |
| Functions | Hours and minutes at 3:00, Power reserve at 10:00 |
| Case dimensions | 40 mm |
| Case thickness | 9.9 mm |
| Case material | Platinum |
| Dial | Ruthenium on Gold and whitened guilloché Silver |
| Hands | blued Steel |
| Strap | Leather strap |
| Jewels | 28 |
| Power reserve | 42±2 hours |
| Frequency | 21600 VPH, 3 Hz |
| Edition | Limited series Ruthenium, numbered 1 to 99. |
| Status | No longer in the current collection |
