- Movement
- Self-winding
- Size
- 40 mm
- Edition
- Limited series numbered 1 to 150, produced between 2004 and 2006.
Overview
The zodiac on the date train

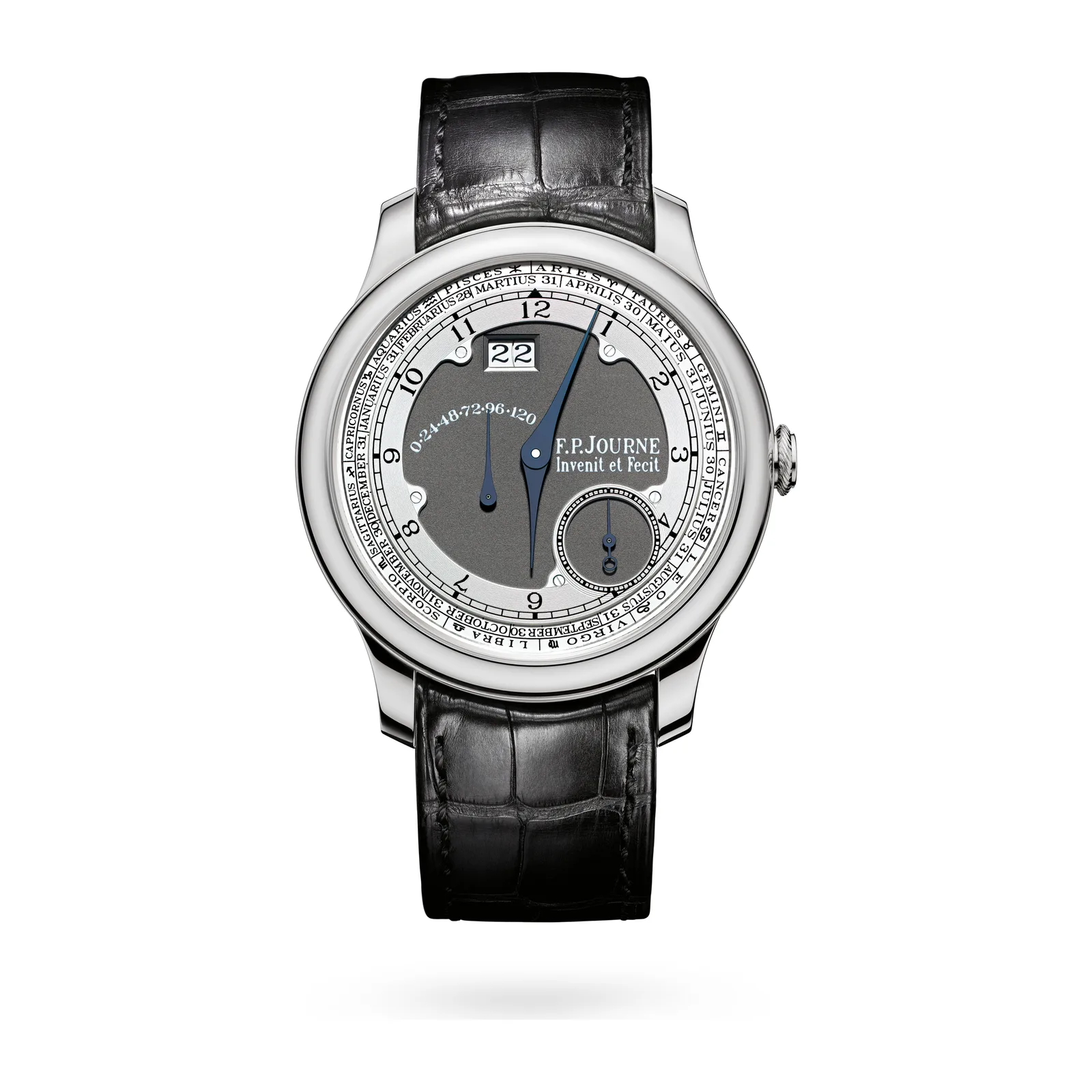

The F.P. Journe Octa Zodiaque, reference Z, in platinum on a leather strap, with the slate grey 18K gold and whitened guilloché silver dial and blued steel hands. 40 mm and 10.6 mm high, self-winding calibre 1300 in brass, with central hours and minutes and the month and zodiac sign at 12.
The Octa Zodiaque was produced between 2004 and 2006 in a series numbered 1 to 150, in a 40 mm platinum case with a brass movement. François-Paul Journe meant it as a graphic reference to the stars, which have served as markers for calculating time and have shaped human beliefs. It is built on the Octa self-winding calibre and was, in the brand's account, the second model after the Octa Divine to carry central blued hour and minute hands.
The zodiac band of the sky chart is divided into twelve parts and bounded by two circles parallel to the ecliptic at an angle of 8.5°, within which the sun's apparent movement is shown. The watch takes its layout from it: an outer ring carrying the 12 hour graduations moves each day, driven by the large date mechanism, and brings the month and sign of the zodiac to 12 o'clock. The dial, in slate grey 18K gold and whitened guilloché silver, adds a power reserve indicator at 7:30, a large date at 11:30 and small seconds.
For collectors
The large date system advances the month and zodiac ring each day, so the zodiac display is read off the same mechanism as the date.
Key details
Design and engineering
- Zodiac ringThe outer ring with its twelve graduations is moved daily by the large date system, bringing the current month and zodiac sign to 12 o'clock.
- Central handsBlued steel hour and minute hands at the centre, an arrangement the brand says it had used once before, on the Octa Divine.
- Bi-directional windingThe off-centre rotor winds in both directions. The large date changes instantaneously and is set with the crown in its second position; the time is set in the third.
- Free-sprung balanceFour inertia weights, a flat Anachron microflamed spring laser-welded to the collet with Nivatronic, a mobile stud holder and a slipping mainspring.
Calibre 1300
- Automatic, bi-directional winding; brass
- In-line lever escapement, 15-tooth wheel
- 21,600 vibrations per hour (3 Hz), 28 jewels
- Power reserve 160 ± 12 hours
- 30.80 mm overall diameter, 5.70 mm high, 235 parts
The reference
Technical specifications
| Reference | Z |
|---|---|
| Collection | Limited Series |
| Calibre | Calibre 1300 |
| Movement | Self-winding |
| Functions | Hours and minutes in the center, Small seconds at 4:30, Power reserve indicator at 7:30, Month and zodiac signs at 12h00, Large date at 11:30 |
| Case dimensions | 40 mm |
| Case thickness | 10.6 mm |
| Case material | Platinum |
| Dial | slate grey Gold and whitened guilloché Silver |
| Hands | blued Steel |
| Strap | Leather strap |
| Jewels | 28 |
| Power reserve | 160 +/- 12 hours |
| Frequency | 21'600 VPH, 3 Hz |
| Edition | Limited series numbered 1 to 150, produced between 2004 and 2006. |
| Status | No longer in the current collection |
