- Case
- Tonneau
- Size
- 50.00 × 42.70 × 16.40 mm
- Edition
- 30 pieces across all documented case configurations
Overview
Carbon NTPT® case with tourbillon chronograph and mechanical G-force sensor
Introduced in 2014, the RM 50-01 was developed with Formula 1 driver Romain Grosjean and the Lotus F1 Team. Its manually wound RM50-01 calibre combines a tourbillon, chronograph and mechanical G-force sensor with a function indicator showing the selected winding, neutral or hand-setting position.

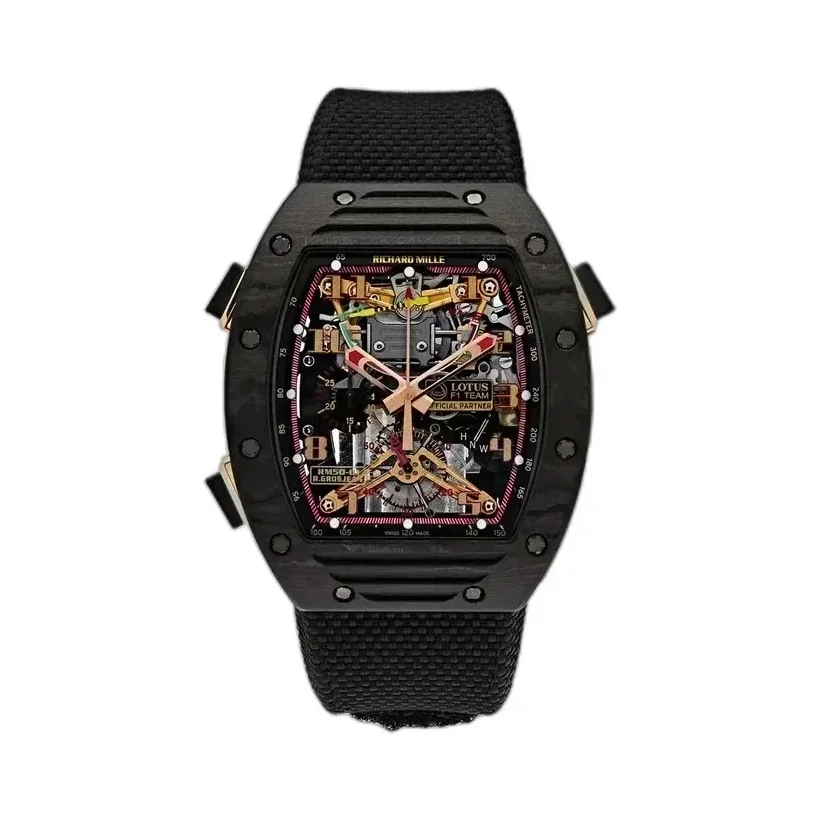

The pictured configuration uses Carbon NTPT® for the bezel, caseband and caseback. The skeletonised movement is constructed around a grade 5 titanium baseplate and incorporates more than 500 components. The RM 50-01 was produced in an edition of 30 pieces across its documented case configurations.
Key details
MovementManual-winding calibre RM50-01
ComplicationsTourbillon, chronograph and mechanical G-force sensor
Edition30 pieces
Design and engineering
- Mechanical G-force sensorThe mechanical G-force sensor measures forces generated during rapid acceleration and deceleration. Its display beneath 12 o’clock uses coloured sectors to indicate the measured load.
- Tourbillon chronograph calibreCalibre RM50-01 combines a tourbillon with a chronograph displaying central chronograph seconds and elapsed minutes on a 30-minute totaliser.
- Function indicatorA dedicated indicator displays the position of the crown mechanism as W for winding, N for neutral and H for hand setting.
- Grade 5 titanium movement structureThe skeletonised baseplate and principal movement bridges are produced from grade 5 titanium, providing structural support for the tourbillon, chronograph and G-force mechanisms.
- Carbon NTPT® caseThe case uses Carbon NTPT®, a layered carbon composite formed from thin carbon-filament sheets positioned at alternating orientations before compression and curing.
- Fast-rotating barrelThe mainspring barrel completes one revolution every six hours and is combined with a progressive-recoil barrel pawl and involute-profile gearing.
Specifications
Technical specifications
| Reference | RM 50-01 |
|---|---|
| Calibre | RM50-01, manual winding tourbillon |
| Functions | Hours, minutes, g-sensor, chronograph with central seconds and 30-minute counter at 9 o’clock; tourbillon |
| Power reserve | Circa 70 hours (± 10%) |
| Baseplate | Grade 5 titanium, skeletonised |
| Bridges | Grade 5 titanium; tourbillon and g-sensor bridges in galvanised stainless steel |
| Chronograph | Column wheels in grade 5 titanium |
| Case | Tonneau |
| Case dimensions | 50.00 × 42.70 × 16.40 mm |
| Case material | Carbon NTPT® |
| Crystals | Sapphire (1,800 Vickers), anti-glare both sides; bezel side 1.50 mm; caseback 1.20 mm centre, 2.04 mm edge |
| Strap | Black |
| Year | 2014 |
| Winding | Manual |
| Frequency | 21,600 vph (3 Hz) |
| Jewels | Not established — sources give both 30 and 35 |
| Movement dimensions | 32.00 × 36.70 × 7.53 mm |
| Tourbillon diameter | 12.30 mm |
| Balance diameter | 11.50 mm |
| Balance | Glucydur, two arms, four setting screws |
| Balance spring | ELINVAR by Nivarox® |
| Shock protection | KIF Elastor KE 160 B28 |
| Function indicator | Winding / Neutral / Hand setting |
| Bezel | Carbon NTPT® |
| Caseband | Carbon NTPT® |
| Caseback | Carbon NTPT® with sapphire display crystal |
| Water resistance | 50 m |
| Edition | 30 pieces across all documented case configurations |
