- Year
- 2016
- Condition
- Excellent
- Set
- Box and papers
- Case
- Tripartite tonneau
- Movement
- Automatic winding, skeletonised
- Size
- 52.63 × 34.40 × 13.00 mm
Set and condition
Complete set
This RM 037 White Ceramic Jasper is accompanied by its original presentation box, warranty card and supporting documentation. The watch and included items are inspected by an expert watchmaker before sale. Additional photographs and video of this piece are available on request.
Original presentation box
Original presentation box and packaging.
Original papers
Warranty card and supporting documentation.
Inspected prior to sale
Reviewed for condition, completeness and functionality. Additional details and photographs are available on request.
Condition photography
Additional close-up images of specific areas are available before purchase.

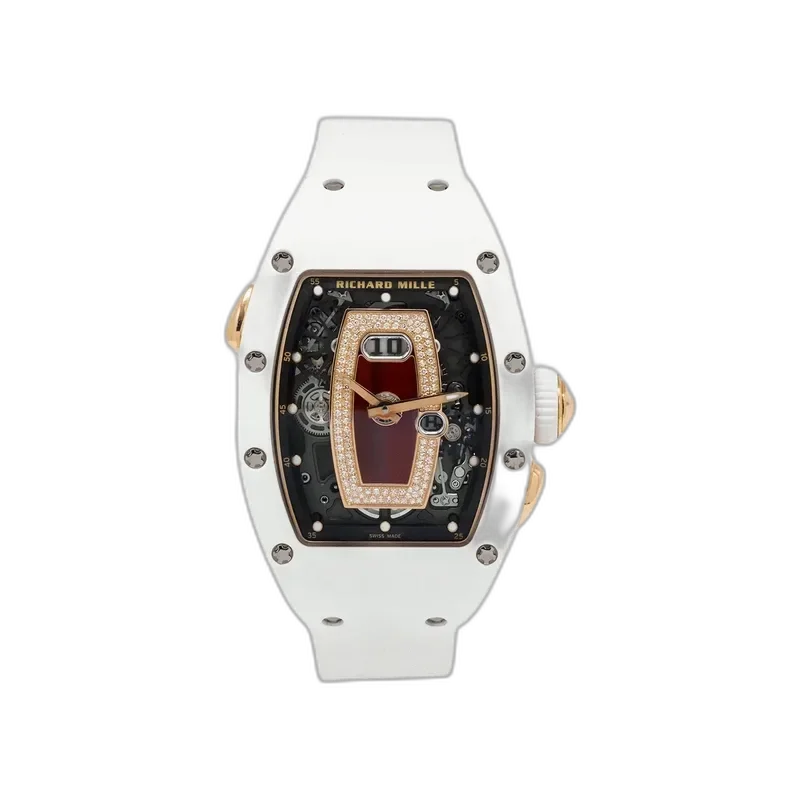

Overview
ATZ white ceramic and red gold with a jasper centre
ATZ is Richard Mille’s designation for white ceramic, hard and matte, holding its colour without the tonal change a plated finish takes on. It forms the bezel and caseback here, with red gold on the crown, the pushers and the inner bezel.
The dial-centre plate is red gold, set around a jasper panel whose red-brown banding runs against the white of the case. The strap is white rubber.
Key details
Design and engineering
- ATZ white ceramicDistinct from the TZP designation Richard Mille uses for black and coloured ceramic, and chosen for hardness and scratch resistance.
- Jasper dial centreA natural hardstone panel, cut and set into the centre plate; no two panels carry the same grain.
- Oversize dateSemi-instantaneous, placed horizontally under 12 o’clock, driven by two skeletonised calendar discs over a white field.
- Function selectorA push-button at 4 o’clock selects winding, neutral and hand-setting with a single push; an aperture at 4 o’clock shows W, N or H. A second push-button at 10 o’clock corrects the date.
- Case productionThe tripartite construction is assembled with 20 grade 5 titanium spline screws and abrasion-resistant 316L stainless steel washers, sealed to 50 metres by two Nitrile O-rings.
- Fast-rotating barrelOne revolution in five hours rather than the conventional 7.5, which improves the mainspring’s delta curve.
The reference
Technical specifications
| Reference | RM 037 |
|---|---|
| Calibre | CRMA1, in-house |
| Movement | Automatic winding, skeletonised |
| Functions | Hours, minutes, oversize date, function selector, variable-geometry rotor |
| Power reserve | Around 50 hours (± 10%) |
| Movement dimensions | 28.00 × 22.90 mm, thickness 5.79 mm |
| Jewels | 25 |
| Balance | CuBe, 4 arms, 4 setting screws, moment of inertia 7.5 mg·cm², angle of lift 50° |
| Frequency | 28,800 vph (4 Hz) |
| Balance spring | AK3 |
| Shock protection | Incabloc 908.22.211.100 (transparent) |
| Escapement wheel jewels | Rubifix (transparent) |
| Baseplate and bridges | Microblasted grade 5 titanium, electroplasma treated |
| Barrel | Fast rotating, 1 revolution in 5 hours |
| Rotor | Variable geometry; ARCAP outside edge and edge ring, heavy metal weight segment, ceramic ball bearings, OneWay® winding system |
| Case | Tripartite tonneau |
| Case dimensions | 52.63 × 34.40 × 13.00 mm |
| Case materials | ATZ white ceramic and red gold |
| Dial centre | Jasper in a set red gold plate |
| Case assembly | 20 grade 5 titanium spline screws, 316L stainless steel washers, 2 Nitrile O-ring seals |
| Water resistance | 50 m |
| Strap | White rubber |
