- Year
- 2022
- Condition
- Very good
- Accessories
- Box and papers
- Case
- Tripartite, round
- Movement
- Automatic winding, skeletonised
- Size
- 50.00 × 17.80 mm
Overview
Flyback chronograph and annual calendar, water resistant to 300 metres

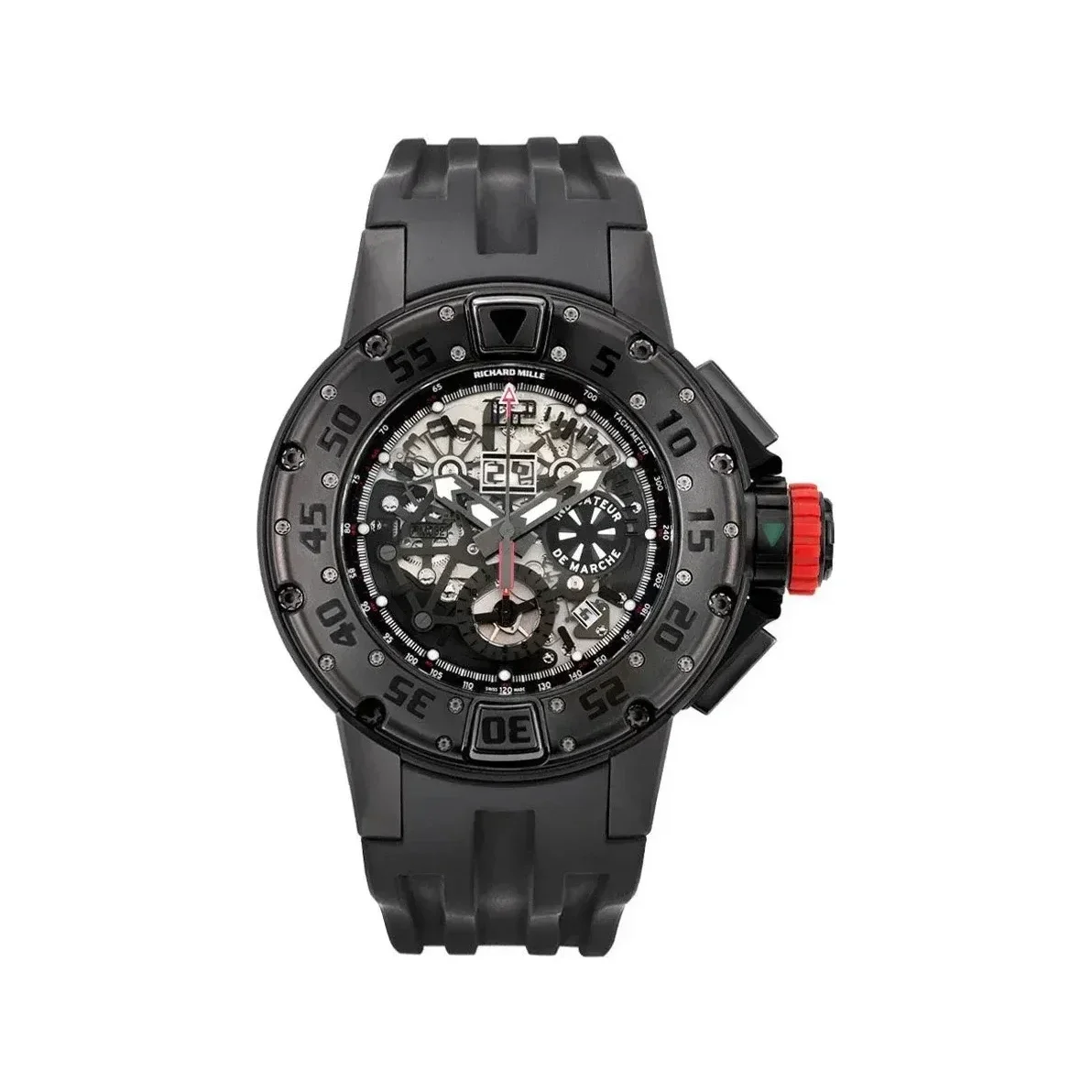

The RM 032 was introduced in 2011 as Richard Mille’s diving chronograph. The calibre RMAC2 combines a flyback chronograph with minutes and seconds counters and a 12-hour counter, an annual calendar with an oversize date at 12 o’clock and a month indicator between 4 and 5 o’clock, and a running indicator at 3 o’clock.
The case measures 50.00 × 17.80 mm and is water resistant to 300 metres, with a unidirectional rotating bezel conforming to ISO 6425.
Key details
MovementCalibre RMAC2, skeletonised automatic winding
Water resistance300 m (30 atm), ISO 6425
Power reserveCirca 50 hours; 45 hours with the chronograph running
Design and engineering
- Flyback chronographThe pusher between 4 and 5 o’clock resets the running chronograph without first stopping the mechanism.
- Annual calendarThe date advances correctly across 30- and 31-day months, February excepted. The date numerals are formed from two discs with the digits cut out as positive stencils; the month is shown in Arabic numerals between 4 and 5 o’clock.
- Running indicatorAt 3 o’clock, turning at 2 rpm. The disc alternates SuperLumiNova® and black sectors so that movement can be confirmed at a glance in daylight or darkness.
- Patented locking crownRotating the crown ring locks the crown and pushers against accidental operation under water pressure — green index unlocked, red index locked — and raises seal pressure.
- Bezel constructionAssembled from three layers held by 22 screws; the bezel rotates unidirectionally so that elapsed dive time cannot be overstated.
- Case productionAfter a 1½-hour turning phase, the tripartite case undergoes 830 operations across a nine-hour milling phase, an eleven-hour machining phase and an hour of quality control. The pushers, their components and the crown require a ten-day machining phase with repeated water-resistance testing.
Specifications
Technical specifications
| Reference | RM 032 |
|---|---|
| Calibre | RMAC2 |
| Movement | Automatic winding, skeletonised |
| Functions | Hours, minutes, seconds, oversize date, month, flyback chronograph with minutes and seconds counters, 12-hour counter, running indicator, variable-geometry rotor |
| Power reserve | Circa 50 hours (± 10%); 45 hours with the chronograph running |
| Movement dimensions | 39.15 mm diameter, thickness 9.00 mm |
| Jewels | 62 |
| Balance | Glucydur®, 4 arms, moment of inertia 4.8 mg·cm², angle of lift 53° |
| Frequency | 28,800 vph (4 Hz) |
| Balance spring | Elinvar by Nivarox® |
| Shock protection | Incabloc 908.22.211.100 (transparent) |
| Escapement wheel jewels | Rubifix (transparent) |
| Stem | Three positions: manual winding, date adjustment, time setting |
| Barrels | Double barrel |
| Rotor | Variable geometry, 18K white gold weight segment, ceramic ball bearings, unidirectional anticlockwise |
| Case | Tripartite, round |
| Case dimensions | 50.00 × 17.80 mm |
| Bezel | Unidirectional, three layers, 22 screws, ISO 6425 |
| Crown | Patented locking crown, green index unlocked, red index locked |
| Water resistance | 300 m (30 atm) |
| Strap | Black rubber |
| Introduced | 2011 |
