- Year
- 2014
- Condition
- Good
- Set
- Box and papers
- Case
- 18k white gold, tripartite construction
- Movement
- Automatic, skeletonised
Set and condition
Complete set

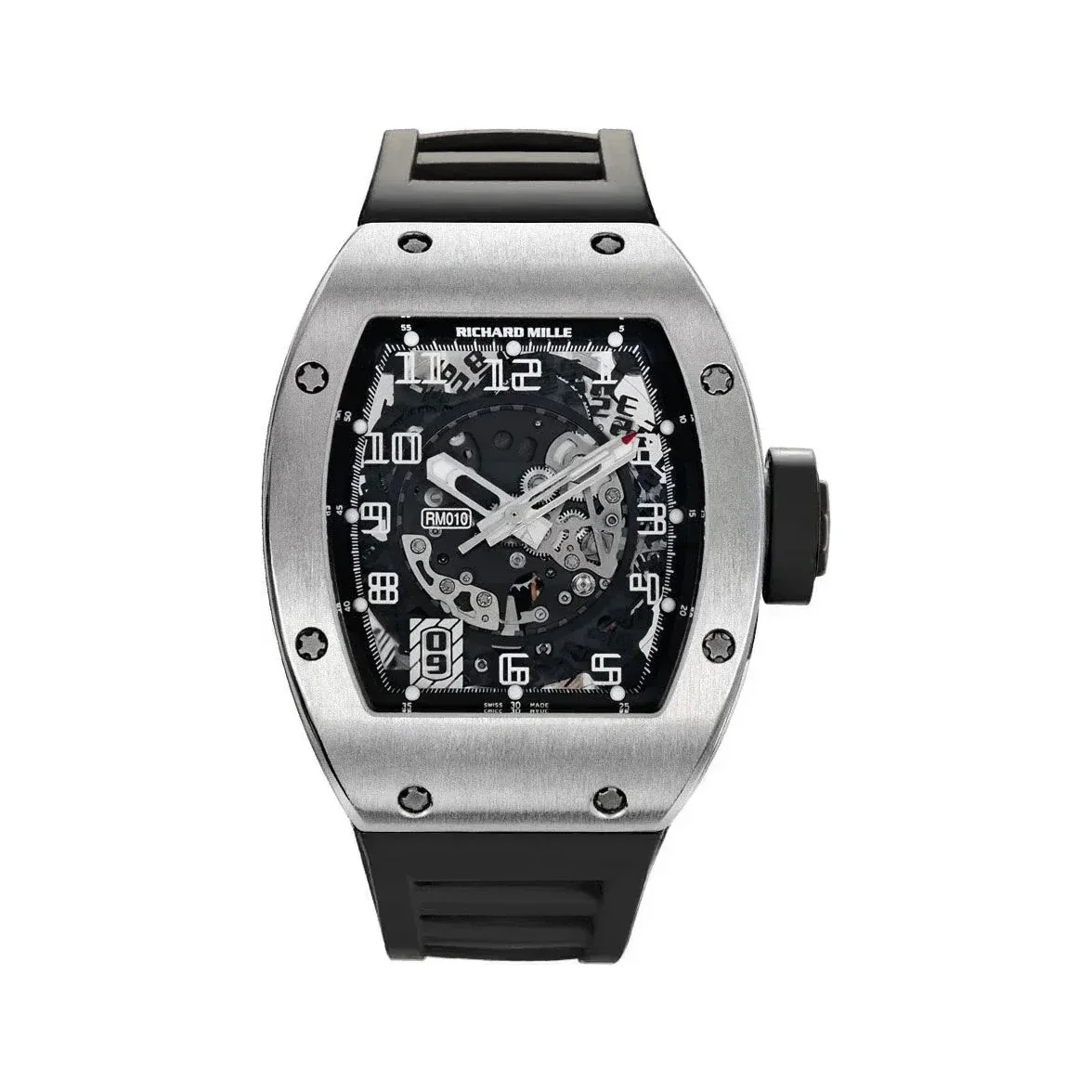

This RM 010 White Gold is accompanied by its original presentation box, warranty card and supporting documentation. The watch and included items are inspected by an expert watchmaker before sale. Additional photographs and video of this piece are available on request.
Original presentation box
Original presentation box and packaging.
Original papers
Warranty card and supporting documentation.
Inspected prior to sale
Reviewed for condition, completeness and functionality. Additional details and photographs are available on request.
Condition photography
Additional close-up images of specific areas are available before purchase.
Overview
Automatic with oversize date
The RM 010 is Richard Mille’s non-tourbillon automatic, built around a skeletonised movement with hours, minutes, seconds and a date at 7 o’clock. The baseplate and bridges are grade 5 titanium — 90% titanium, 6% aluminium, 4% vanadium — ribbed using a methodology drawn from racing car engine development to reduce weight while retaining strength and flatness. Richard Mille notes that almost two kilos of pressure are held under control within the movement.
The case was the subject of a year of research and development. Producing each one requires 68 stamping operations across the bezel, middle section and case back, with 202 separate machining operations per rough case. This example is cased in 18k white gold.
Key details
Design and engineering
- Ribbed grade 5 titanium baseplateRibbed to reduce weight while retaining strength and flatness, using a methodology applied in racing car engine development.
- Variable-geometry rotorArm and flange in grade 2 titanium with six-position adjustment via grade 5 titanium screws, wings in 18-carat high-palladium white gold, weight segment in tungsten/cobalt alloy, ceramic ball bearings. Unidirectional, anticlockwise winding.
- Case production68 stamping operations across the three main case components; 202 separate machining operations per rough case. Machine tooling adjustment takes 8 days for the bezel and 5 days each for the middle section and case back.
- Three-position stemManual winding, time setting and date adjustment.
- Black carbon fibre flangeThe interior flange is carbon fibre.
The reference
Technical specifications
| Reference | RM 010 |
|---|---|
| Dimensions | 48.00 × 39.30 × 13.84 mm |
| Case | 18k white gold, tripartite construction |
| Crystal | Curved sapphire, front and display back |
| Water resistance | 50 m |
| Movement | Automatic, skeletonised |
| Movement dimensions | 30.20 × 28.60 × 6.35 mm |
| Baseplate and bridges | Grade 5 titanium, ribbed |
| Jewels | 32 |
| Balance | Glucydur, 3 arms, moment of inertia 4.8 mg·cm², lift angle 53° |
| Balance spring | Elinvar Nivarox |
| Index assembly | Triovis No. 2 |
| Shock protection | Incabloc 908.22.211.100 |
| Winding | Variable-geometry rotor, six-position adjustment, unidirectional |
| Functions | Hours, minutes, seconds · Date at 7 o’clock · Adjustable rotor geometry |
| Frequency | 28,800 vph (4 Hz) |
| Power reserve | 55 hours |
Buying with HYPA
Purchase with confidence
- Original warranty card included, dated 2014
- Free insured delivery within Australia · international quoted
- Payment by bank transfer
- Registered Australian dealerHYPA International Pty Ltd · Registered Victorian second-hand dealer, Registration No. SHD-0018017.
- Direct specialist supportSpeak with the HYPA team before, during and after the purchase.
- Rated 5.0 on Google · 6 reviewsFrom clients of HYPA International on Google. Read the reviews
