Overview
The Golden Ellipse as a canvas

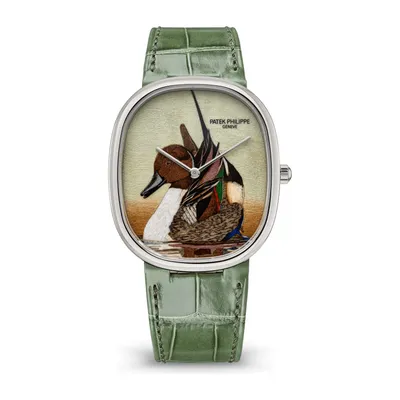

The Patek Philippe Rare Handcrafts Northern Pintail, reference 5738/50G-047, a Golden Ellipse in white gold with a dial in wood marquetry of 161 veneer parts in 45 species of wood, on a shiny olive green alligator strap. Self-winding calibre 240, hours and minutes only; 34.5 × 39.5 mm, 6.58 mm high.
The dial of 5738/50G-047 is wood marquetry rather than enamel: a portrait of a northern pintail, the migratory duck, on a ground in shades of vert d'eau. Patek Philippe describes 161 veneer parts and 25 small inlays cut and assembled from a palette of 45 species of wood, chosen for colour, texture and veining, to give the streamlined plumage and the bird's gaze. Patek Philippe presents it as a limited edition of ten watches, in white gold on a shiny olive green alligator strap.
The reference 5738/50 is the Golden Ellipse of Patek Philippe's Rare Handcrafts collection: the elliptical case whose proportions the brand traces to the ancient golden section, here 34.5 × 39.5 mm and 6.58 mm high, with a solid case back. The dial carries only hours and minutes, read from cheveu-style hands stamped in the case metal.

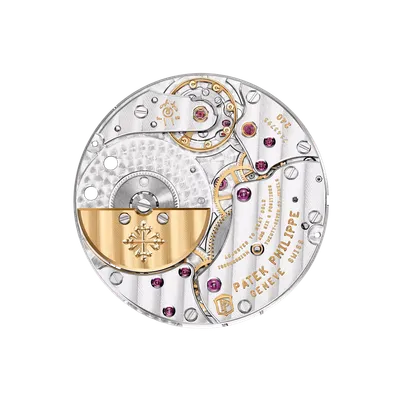

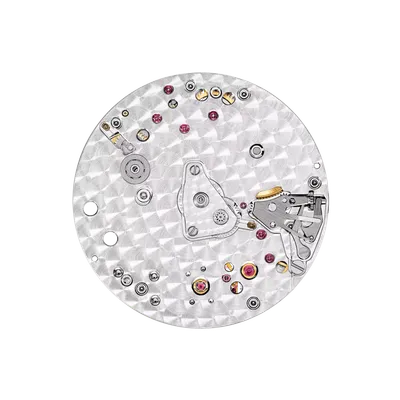

The movement is the self-winding calibre 240, which Patek Philippe lists as ultra-thin: 27.5 mm across and 2.53 mm high, with 152 parts and 27 jewels, wound by a 22K gold minirotor set off-centre in the movement rather than a full rotor turning above it. It runs at 21,600 semi-oscillations an hour on a Gyromax® balance with a Spiromax® balance spring, has a power reserve of at least 48 hours and carries the Patek Philippe Seal. A calibre 2.53 mm high is what lets the case close at 6.58 mm over a dial built up in fired enamel or veneer. Patek Philippe describes the case as humidity- and dust-protected only, not water-resistant.
For collectors
Across the family the case and the movement do not change, so the executions are compared by the dial: Patek Philippe gives each one its own figures — the length and weight of gold wire in a cloisonné dial, the number of enamel colours, the firings and their temperature, or the count of veneer parts and wood species in a marquetry dial — and each is a limited series whose size the brand states. The solid case back is part of the design; the calibre 240 is not on view.
Key details
Design and engineering
- Golden Ellipse caseAn ellipse of 34.5 × 39.5 mm, 6.58 mm high, in white gold; Patek Philippe traces its proportions to the ancient golden section. Humidity- and dust-protected only, not water-resistant.
- Case backSolid, in the case metal; the movement is not on view.
- DialWood marquetry of a northern pintail on a vert d'eau ground: 161 veneer parts and 25 small inlays in 45 species of wood, chosen for colour, texture and veining.
- HandsCheveu-style hour and minute hands, stamped in the case metal.
- Strap and buckleAlligator leather with square scales, hand-stitched, shiny olive green, on a white gold prong buckle whose shape follows the ellipse of the case.
Calibre 240
- Self-winding, 22K gold off-centre minirotor
- Hours and minutes; listed by Patek Philippe as ultra-thin
- 27.5 mm across, 2.53 mm high; 152 parts, 27 jewels
- 21,600 semi-oscillations per hour (3 Hz), Gyromax® balance, Spiromax® balance spring
- Power reserve min. 48 hours
- Patek Philippe Seal
The reference
Technical specifications
| Reference | 5738/50G-047 |
|---|---|
| Collection | Rare Handcrafts |
| Calibre | Caliber 240 |
| Movement | Self-winding |
| Functions | Ultra-thin |
| Case dimensions | 34.5 × 39.5 mm |
| Case thickness | 6.58 mm |
| Case material | White gold |
| Water resistance | Not water-resistant |
| Strap | Alligator leather with square scales, hand-stitched, shiny olive green |
| Clasp | White gold prong buckle |
| Jewels | 27 |
| Power reserve | min. 48 hours |
| Frequency | 21,600 semi-oscillations/hour (3 Hz) |
| Piece | Northern Pintail |
