- Year
- 2026
- Condition
- Unworn
- Set
- Box and papers
- Movement
- Self-winding
- Size
- 39 mm
Set and condition
Complete set
This Complications Skeleton Watch, Rare Handcrafts is accompanied by its original presentation box, warranty card and supporting documentation. The watch and included items are inspected by an expert watchmaker before sale. Additional photographs and video of this piece are available on request.
Original presentation box
Original presentation box and packaging.
Original papers
Warranty card and supporting documentation.
Inspected prior to sale
Reviewed for condition, completeness and functionality. Additional details and photographs are available on request.
Condition photography
Additional close-up images of specific areas are available before purchase.
Overview
A calibre 240 cut to its bones

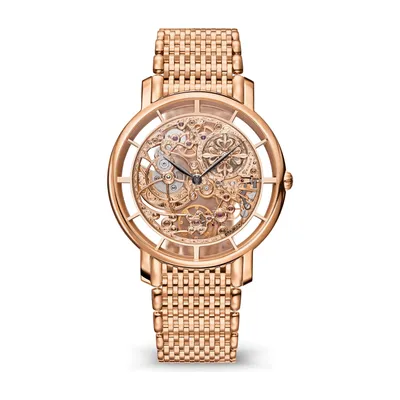

The Patek Philippe Complications Skeleton Watch, Rare Handcrafts, reference 5180/1R-001, in rose gold on a polished rose gold mesh bracelet, the movement shown in place of a dial with blackened white gold leaf-shaped hands. Self-winding ultra-thin calibre 240 SQU, entirely skeletonised and engraved by hand over almost 130 hours; 39 mm, 6.7 mm high.
The reference 5180/1R-001 is Patek Philippe's skeleton watch in rose gold, in the Complications collection under Rare Handcrafts: the brand presents it as a tribute to the old craft of skeletonising, with the ultra-thin self-winding calibre 240 SQU entirely openworked, decorated and engraved by hand. The case is rose gold, 39 mm across and 6.7 mm high, on a polished rose gold mesh bracelet with a rose gold fold-over clasp. There is no dial: the movement is the face, with blackened white gold leaf-shaped hands over it.

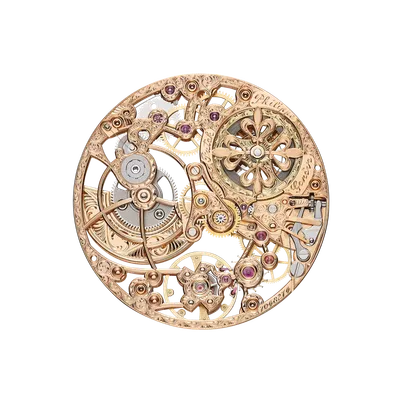

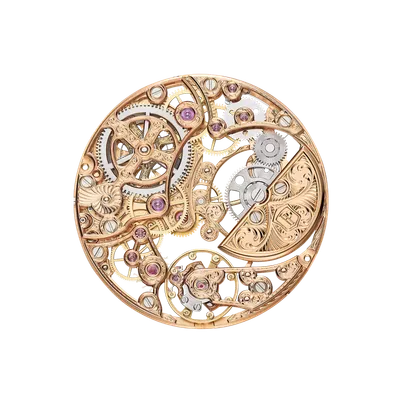

The calibre 240 SQU is the skeleton form of the brand's ultra-thin 240, wound by a 22K gold off-centre minirotor, which here carries the engraved Patek Philippe Seal. The movement is skeletonised throughout, then decorated and engraved by hand; Patek Philippe puts the engraving alone at almost 130 hours. It measures 27.5 mm across and 2.53 mm high, with 151 parts and 27 jewels, runs at 21,600 semi-oscillations an hour on a Gyromax® balance with a Spiromax® balance spring, and has a power reserve of at least 48 hours.
For collectors
The figure Patek Philippe gives is the one to hold on to — almost 130 hours of hand-engraving on a movement 2.53 mm high — and the Seal is engraved on the minirotor itself, which the brand notes as the mark of the piece.
Key details
Design and engineering
- Skeletonised calibre 240 SQUThe ultra-thin self-winding movement openworked throughout, then decorated and engraved by hand — almost 130 hours of engraving, by Patek Philippe's count.

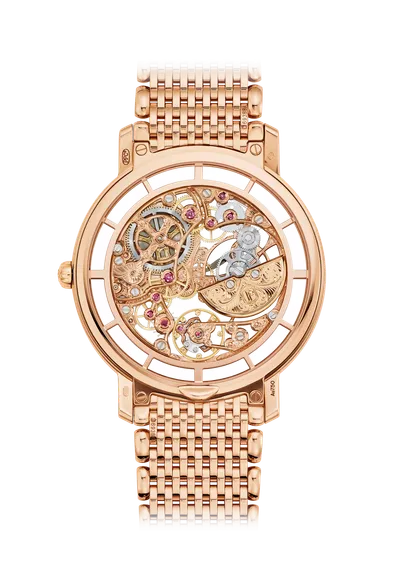

- CaseRose gold, 39 mm across and 6.7 mm high; sapphire crystal case back, water-resistant to 30 m.
- HandsBlackened white gold, leaf-shaped, over the openworked movement; there is no dial plate.
- Bracelet and claspPolished rose gold mesh bracelet with a rose gold fold-over clasp.
- Seal on the minirotorThe Patek Philippe Seal is engraved on the 22K gold off-centre minirotor.
Calibre 240 SQU
- Self-winding, 22K gold off-centre minirotor; ultra-thin
- Entirely skeletonised, decorated and engraved by hand
- 27.5 mm across, 2.53 mm high; 151 parts, 27 jewels
- 21,600 semi-oscillations per hour (3 Hz), Gyromax® balance, Spiromax® balance spring
- Power reserve min. 48 hours
- Patek Philippe Seal, engraved on the minirotor
The reference
Technical specifications
| Reference | 5180/1R-001 |
|---|---|
| Collection | Complications |
| Calibre | Caliber 240 SQU |
| Movement | Self-winding |
| Functions | Ultra-thin, Entirely skeletonized, decorated and engraved by hand |
| Case dimensions | 39 mm |
| Case thickness | 6.7 mm |
| Case material | Rose gold |
| Case back | Sapphire crystal case back |
| Water resistance | 30 m |
| Dial | Blackened white gold leaf-shaped hands |
| Bracelet | Rose gold |
| Clasp | Rose gold fold-over clasp |
| Jewels | 27 |
| Power reserve | min. 48 hours |
| Frequency | 21,600 semi-oscillations/hour (3 Hz) |
