- Movement
- Automatic winding, skeletonised
- Size
- 50.00 × 42.70 × 13.95 mm
Overview

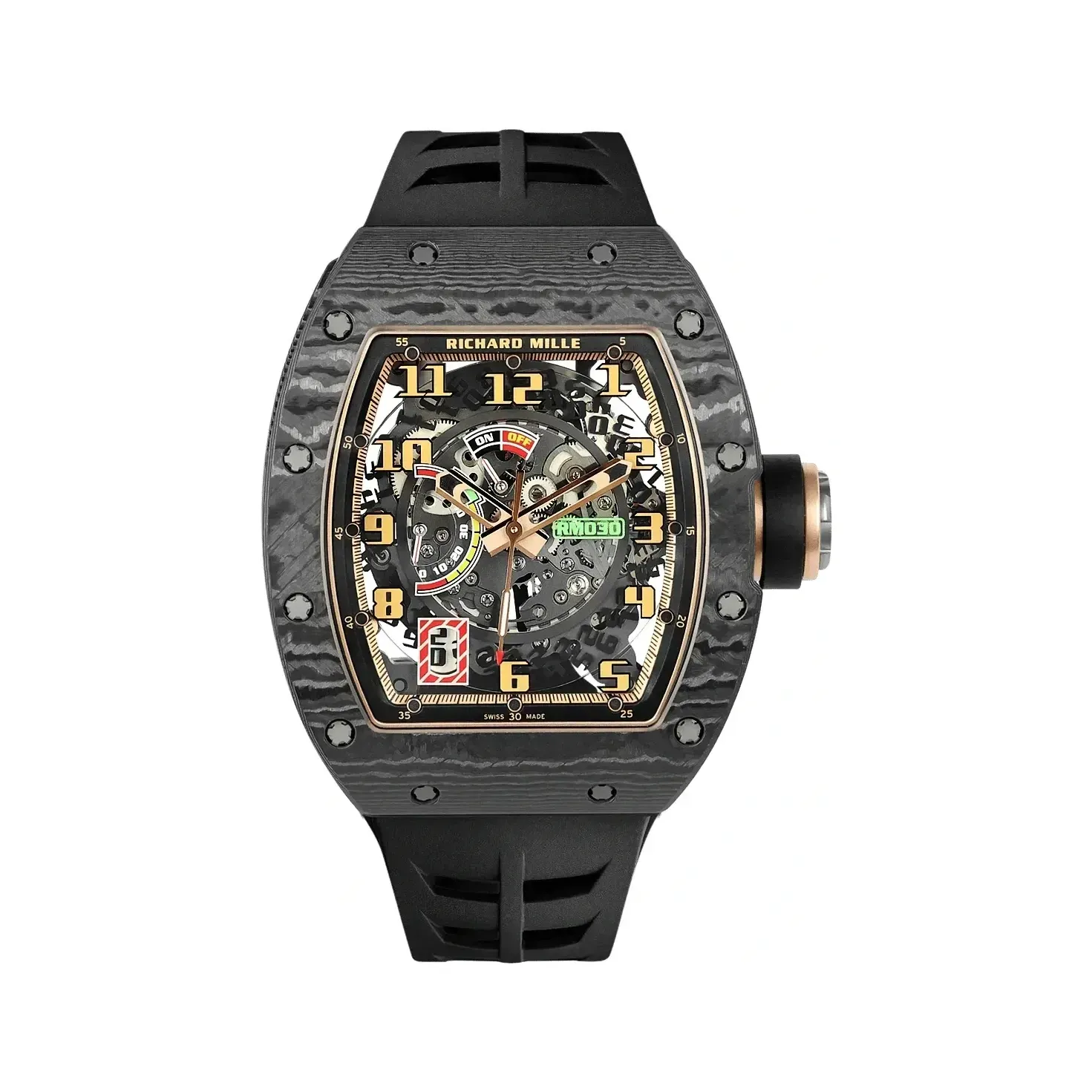

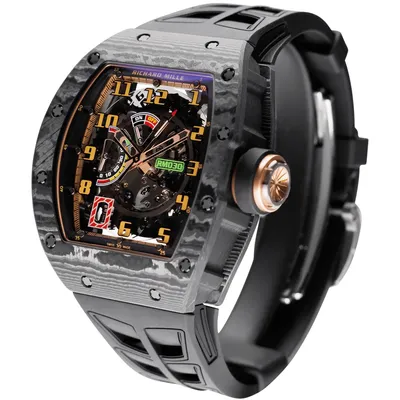

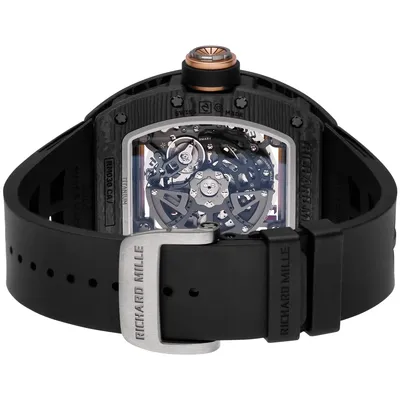

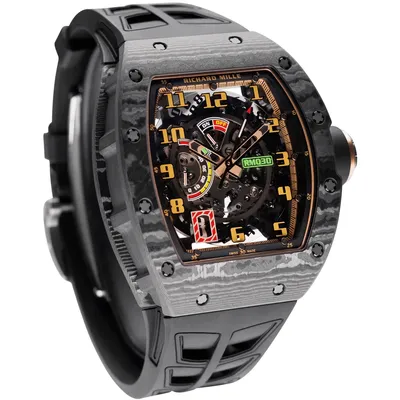

Ultimate Edition in Carbon TPT® with red gold and yellow detailing
This execution combines a Carbon TPT® case with red gold and yellow detailing on the dial and flange. Trade listings pair the Ultimate Edition with titanium alongside the carbon; no edition size has been published.
Case and movement are those of the RM 030: 50.00 × 42.70 × 13.95 mm, the calibre RMAR1, and a rotor that declutches at 50 hours of power reserve and re-engages at 40.
Key details
Case materialCarbon TPT®
MovementCalibre RMAR1, skeletonised automatic winding
Case dimensions50.00 × 42.70 × 13.95 mm
Design and engineering
- Declutchable rotorThe rotor disconnects from the winding barrel once the mainspring is fully wound and reconnects when the reserve falls to 40 hours.
- Winding and power-reserve indicationsThe winding indicator sits at 12 o’clock and the power-reserve scale at 9 o’clock, so both the state of the clutch and the remaining energy can be read.
- Free-sprung balance with variable inertiaA Glucydur® balance with four arms, a moment of inertia of 4.8 mg·cm² and a lift angle of 53°.
- Carbon TPT®Layered carbon filament composite, machined to expose the layer structure.
- Case machining86 preparatory operations, 49 of them striking, precede the cutting and milling of the three case components.
Specifications
Technical specifications
| Reference | RM 030 |
|---|---|
| Calibre | RMAR1 |
| Movement | Automatic winding, skeletonised |
| Functions | Hours, minutes, seconds, date, winding indicator, power-reserve indicator, declutchable variable-geometry rotor |
| Power reserve | Circa 55 hours |
| Declutch thresholds | Disengages at 50 hours, re-engages at 40 hours |
| Frequency | 28,800 vph (4 Hz) |
| Jewels | 40 |
| Balance | Glucydur®, 4 arms, moment of inertia 4.8 mg·cm², angle of lift 53°; free-sprung with variable inertia |
| Barrels | Two |
| Baseplate and bridges | Grade 5 titanium, wet sandblasted, Titalyt® treated |
| Case dimensions | 50.00 × 42.70 × 13.95 mm |
| Case shape | Tonneau, tripartite |
| Case material | Carbon TPT® |
| Detailing | Red gold and yellow, per the photograph |
| Crystal | Sapphire |
| Water resistance | 50 m |
| Strap | Black rubber |
