- Case
- Carbon TPT®, tripartite construction
- Movement
- Manual winding, calibre RM 004, semi-skeletonised
Overview

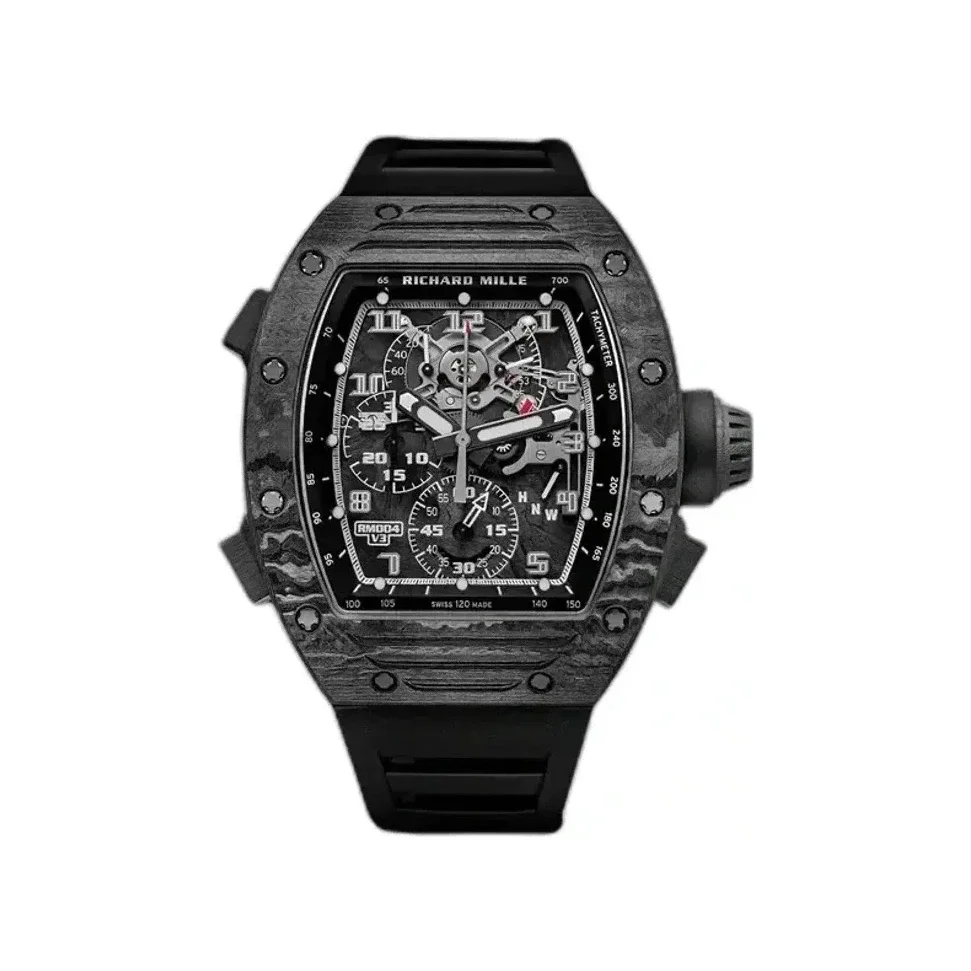

Split-seconds chronograph in Carbon TPT®
An execution of the RM 004 split-seconds chronograph with a Carbon TPT® case. The material is constructed from several hundred carbon filament layers, each under 30 microns thick, laid with the fibre direction rotated between layers and cured under heat and pressure. Machining across the layers produces a striated surface pattern that differs between cases.
Key details
ReferenceRM 004 Split-Seconds Chronograph
Case materialCarbon TPT®
ConstructionLayered composite, machined to reveal the layers
Design and engineering
- Carbon TPT® constructionParallel carbon filament layers under 30 microns thick, resin-impregnated, stacked with the fibre orientation rotated between layers and cured under heat and pressure.
- Split-seconds chronographColumn-wheel rattrapante with two central chronograph seconds hands, 30-minute counter at 9 o’clock and small seconds at 6.
- Dial instrumentationPower-reserve and torque sectors display remaining energy and delivered mainspring force separately, with a function indicator showing crown position.
The reference
Technical specifications
| Reference | RM 004 |
|---|---|
| Case | Carbon TPT®, tripartite construction |
| Dimensions | Approx. 48.00 × 39.00 mm (tonneau) |
| Crystal | Sapphire, front and display back |
| Water resistance | 50 m |
| Movement | Manual winding, calibre RM 004, semi-skeletonised |
| Functions | Hours, minutes, seconds · Split-seconds chronograph · 30-minute totaliser · Power-reserve indicator · Torque indicator · Function indicator (W–N–H) |
| Frequency | 21,600 vph (3 Hz) |
| Power reserve | circa 70 hours |
| Chronograph | Column wheel; start/stop at 8, reset at 10, split at 4 |
| Model | RM 004 Carbon TPT® |
| Dial | Semi-skeletonised sapphire dial |
| Caseback | Sapphire display back |
| Strap | Black rubber strap |
